Bearings, units and housings -- Track rollers -- Cam followers -- Cam followers -- SKF KR 22 B

KR 22 B

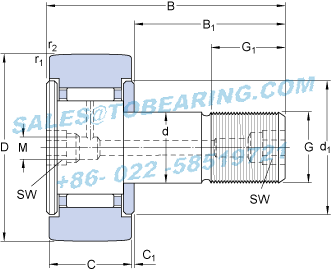

Dimensions

D		22	mm
d		10	mm
B		36	mm
C		12	mm
B₁		23	mm
C₁		0.6	mm
d₁		17.5	mm
G		M 10x1
G₁		12	mm
M		4	mm
SW		5	mm
r_1,2	min.	0.3	mm

Calculation data

Basic dynamic load rating	C	4.4	kN
Basic static load rating	C₀	5	kN
Fatigue load limit	P_u	0.56	kN
Maximum dynamic radial loads	F_r	4.25	kN
Maximum static radial loads	F_0r	6	kN
Limiting speed		5300	r/min

Mass

Mass cam follower

0.045

Mounting information

Recommended tighthening torque

N·m

Included products

Grease fitting			NIP A1x4.5
Hexagonal nut			M 10x1

Model Number: KR 22 B
Inner Diameter：-mm Outer Diameter：22mm Width：12mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Track rollers Cam followers Cam followers
Details： Cam followers
