Bearings, units and housings -- Track rollers -- Cam followers -- Cam followers -- SKF KR 22 PPA

KR 22 PPA

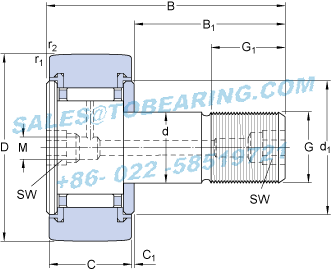

Dimensions

D		22	mm
d		10	mm
B		36	mm
C		12	mm
B₁		23	mm
C₁		0.6	mm
d₁		17.5	mm
G		M 10x1
G₁		12	mm
M		4	mm
SW		5	mm
r_1,2	min.	0.3	mm

Calculation data

Basic dynamic load rating	C	4.4	kN
Basic static load rating	C₀	5	kN
Fatigue load limit	P_u	0.56	kN
Maximum dynamic radial loads	F_r	4.25	kN
Maximum static radial loads	F_0r	6	kN
Limiting speed		5300	r/min

Mass

Mass cam follower

0.043

Mounting information

Recommended tighthening torque

N·m

Included products

Grease fitting			NIP A1x4.5
Hexagonal nut			M 10x1

Model Number: KR 22 PPA
Inner Diameter：-mm Outer Diameter：22mm Width：36mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Track rollers Cam followers Cam followers
Details： Cam followers
Update date：2025-12-16
Application:crimping tools,chromatography,diagnostic test paper,paint paint,non-motor vehicle Electric car,forklift truck,ventilation equipment,pump,storage shelves,key lock,medical equipment
Similar models:SAF 22618 x 3.1/8 TLC SAF 22610 SAF 22515 x 2.3/8 TLC SAF 22536 x 6.5/16 TLC SAFS 22220-11 TLC SAF 22517 x 3 NJ 2222 ECML 22312 EK 6204/HR22T2 7022 ACE/HCP4A
BEARING POWER International Trading Co.,Ltd. specialize in KR22PPA products，there is large inventory of SKF KR 22 PPA Cam followers. We has been built up long-term cooperation with SKF company, could make a bulk order of the KR 22 PPA Which SKF KR22PPA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
