Bearings, units and housings -- Track rollers -- Cam followers -- Cam followers -- SKF KR 22 PPXA

KR 22 PPXA

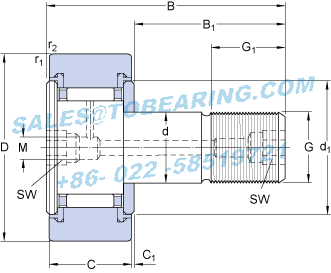

Dimensions

D		22	mm
d		10	mm
B		36	mm
C		12	mm
B₁		23	mm
C₁		0.6	mm
d₁		17.5	mm
G		M 10x1
G₁		12	mm
M		4	mm
SW		5	mm
r_1,2	min.	0.3	mm

Calculation data

Basic dynamic load rating	C	4.4	kN
Basic static load rating	C₀	5	kN
Fatigue load limit	P_u	0.56	kN
Maximum dynamic radial loads	F_r	4.25	kN
Maximum static radial loads	F_0r	6	kN
Limiting speed		5300	r/min

Mass

Mass cam follower

0.043

Mounting information

Recommended tighthening torque

N·m

Included products

Grease fitting			NIP A1x4.5
Hexagonal nut			M 10x1

Model Number: KR 22 PPXA
Inner Diameter：-mm Outer Diameter：22mm Width：36mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Track rollers Cam followers Cam followers
Details： Cam followers
Update date：2026-06-25
Application:Broadcasting System,food add,metallurgy,agricultural testing and analysis equipment and related,large agricultural machinery,other CNC,centrifugal pump,forming machine,Animal Tracking,van,Industrial
Similar models:SAF 22617 x 3 T 229750 J/C3R505 SAF 22520 x 3.3/8 TLC C 2212 V 7022 ACD/HCP4AH1 2219 K SAW 23226 TLC SAFS 22228 6000/HR22T2 BD-22228 CCK/W33-AHX 3128
BEARING POWER International Trading Co.,Ltd. specialize in KR22PPXA products，there is large inventory of SKF KR 22 PPXA Cam followers. We has been built up long-term cooperation with SKF company, could make a bulk order of the KR 22 PPXA Which SKF KR22PPXA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
