Bearings, units and housings -- Track rollers -- Cam followers -- Cam followers -- SKF KR 30 PPXA

KR 30 PPXA

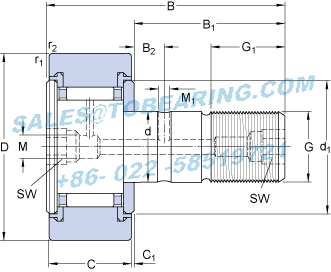

Dimensions

D		30	mm
d		12	mm
B		40	mm
C		14	mm
B₁		25	mm
B₂		6	mm
C₁		0.6	mm
d₁		23	mm
G		M 12x1.5
G₁		13	mm
M		4	mm
M₁		3	mm
SW		6	mm
r_1,2	min.	0.6	mm

Calculation data

Basic dynamic load rating	C	6.44	kN
Basic static load rating	C₀	8	kN
Fatigue load limit	P_u	0.88	kN
Maximum dynamic radial loads	F_r	7.8	kN
Maximum static radial loads	F_0r	11.2	kN
Limiting speed		4800	r/min

Mass

Mass cam follower

0.088

Mounting information

Recommended tighthening torque

N·m

Included products

Grease fitting			NIP A1x4.5
Hexagonal nut			M 12x1.5

Model Number: KR 30 PPXA
Inner Diameter：-mm Outer Diameter：30mm Width：40mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Track rollers Cam followers Cam followers
Details： Cam followers
