Bearings, units and housings -- Track rollers -- Cam followers -- Cam followers -- SKF KR 40 PPA

KR 40 PPA

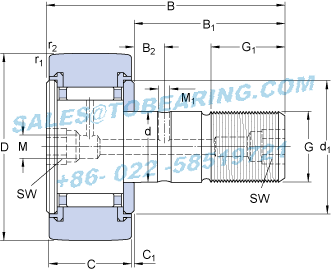

Dimensions

D		40	mm
d		18	mm
B		58	mm
C		20	mm
B₁		36.5	mm
B₂		8	mm
C₁		0.8	mm
d₁		31.5	mm
G		M 18x1.5
G₁		19	mm
M		6	mm
M₁		3	mm
SW		8	mm
r_1,2	min.	1	mm

Calculation data

Basic dynamic load rating	C	10.5	kN
Basic static load rating	C₀	14.6	kN
Fatigue load limit	P_u	1.73	kN
Maximum dynamic radial loads	F_r	12.5	kN
Maximum static radial loads	F_0r	18	kN
Limiting speed		3400	r/min

Mass

Mass cam follower

0.24

Mounting information

Recommended tighthening torque

N·m

Included products

Grease fitting			NIP A2x7.5
Hexagonal nut			M 18x1.5

Associated products

Lubrication adapter

AP 8
