Bearings, units and housings -- Track rollers -- Cam followers -- Cam followers -- SKF KRV 30 B

KRV 30 B

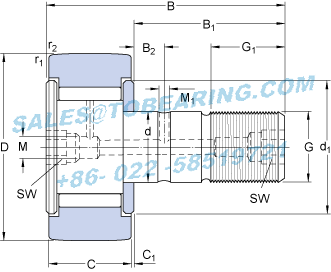

Dimensions

D		30	mm
d		12	mm
B		40	mm
C		14	mm
B₁		25	mm
B₂		6	mm
C₁		0.6	mm
d₁		23	mm
G		M 12x1.5
G₁		13	mm
M		4	mm
M₁		3	mm
SW		6	mm
r_1,2	min.	0.6	mm

Calculation data

Basic dynamic load rating	C	8.97	kN
Basic static load rating	C₀	14.6	kN
Fatigue load limit	P_u	1.66	kN
Maximum dynamic radial loads	F_r	11	kN
Maximum static radial loads	F_0r	15.6	kN
Limiting speed		3200	r/min

Mass

Mass cam follower

0.089

Mounting information

Recommended tighthening torque

N·m

Included products

Grease fitting			NIP A1x4.5
Hexagonal nut			M 12x1.5
