Bearings, units and housings -- Track rollers -- Cam followers -- Cam followers -- SKF KRVE 26 PPA

KRVE 26 PPA

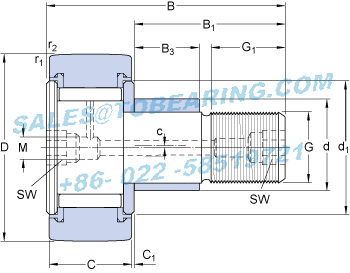

Dimensions

D		26	mm
d		13	mm
B		36	mm
C		12	mm
B₁		23	mm
B₃		10	mm
C₁		0.6	mm
d₁		17.5	mm
G		M 10x1
G₁		12	mm
M		4	mm
SW		5	mm
c		0.5	mm
r_1,2	min.	0.3	mm

Calculation data

Basic dynamic load rating	C	6.82	kN
Basic static load rating	C₀	11	kN
Fatigue load limit	P_u	1.25	kN
Maximum dynamic radial loads	F_r	11.4	kN
Maximum static radial loads	F_0r	16.3	kN
Limiting speed		3600	r/min

Mass

Mass cam follower

0.063

Mounting information

Recommended tighthening torque

N·m

Included products

Grease fitting			NIP A1x4.5
Hexagonal nut			M 10x1
