Bearings, units and housings -- Roller bearings -- Cylindrical roller bearings -- Single row full complement cylindrical roller bearings -- Cylindrical roller bearings, single row, full complement SKF NCF 3017 CV

NCF 3017 CV

Dimensions

d		85	mm
D		130	mm
B		34	mm
d₁	≈	99	mm
D₁	≈	116	mm
E		121.44	mm
s	max.	4	mm
r_1,2	min.	1.1	mm
r_3,4	min.	0.6	mm

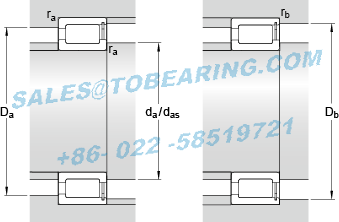

Abutment dimensions

d_a	min.	91	mm
d_as		96.2	mm
D_a	max.	123	mm
D_b	max.	125	mm
r_a	max.	1	mm
r_b	max.	0.5	mm

Calculation data

Basic dynamic load rating	C	172	kN
Basic static load rating	C₀	236	kN
Fatigue load limit	P_u	30	kN
Reference speed		2400	r/min
Limiting speed		3000	r/min
Calculation factor	k_r	0.3
Calculation factor	e	0.3
Calculation factor	Y	0.4

Mass

Mass bearing

1.51

Model Number: NCF 3017 CV
Inner Diameter：85mm Outer Diameter：130mm Width：34mm
Reference speed:3000 r/min Limiting speed:2400 r/min
Type：Bearings, units and housings Roller bearings Cylindrical roller bearings Single row full complement cylindrical roller bearings
Details： Single row full complement cylindrical roller bearings Cylindrical roller bearings, single row, full complement
Update date：2026-06-24
Application:stamping die and its equipment,reducer,Technical Equipment,Storage Tool,plastic blow molding,Cylinder Type,forming machine,Animal Tracking,hook,Film machine,natural instruments
Similar models:GB 3017 NCF 3017 CV LS 130170 33017/DF AS 130170 GRA 3017 AXK 130170 33017
BEARING POWER International Trading Co.,Ltd. specialize in NCF3017CV products，there is large inventory of SKF NCF 3017 CV Single row full complement cylindrical roller bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the NCF 3017 CV Which SKF NCF3017CV is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
