Bearings, units and housings -- Roller bearings -- Cylindrical roller bearings -- Single row cylindrical roller bearings -- Cylindrical roller bearings, single row SKF NJ 2315 ECN2ML

NJ 2315 ECN2ML

SKF Explorer

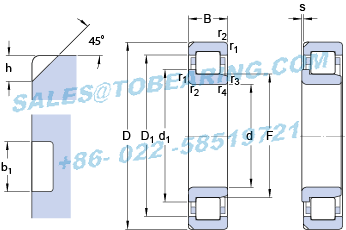

Dimensions

d		75	mm
D		160	mm
B		55	mm
d₁	≈	104	mm
D₁	≈	135.75	mm
F		95	mm
b₁		6.5	mm
h		8.1	mm
r_1,2	min.	2.1	mm
r_3,4	min.	2.1	mm
s	max.	4.8	mm

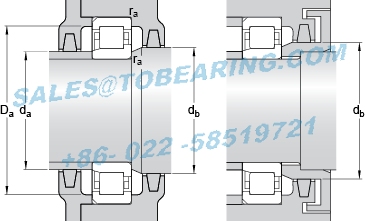

Abutment dimensions

d_a	min.	87	mm
d_a	max.	92	mm
d_b	min.	107	mm
D_a	max.	148	mm
r_a	max.	2	mm

Calculation data

Basic dynamic load rating	C	380	kN
Basic static load rating	C₀	400	kN
Fatigue load limit	P_u	50	kN
Reference speed		4500	r/min
Limiting speed		8000	r/min
Calculation factor	k_r	0.38
Limiting value	e	0.3
Axial load factor	Y	0.4

Mass

Mass bearing

5.54

Associated products

Angle ring

HJ 2315 EC

Model Number: NJ 2315 ECN2ML
Inner Diameter：75mm Outer Diameter：160mm Width：55mm
Reference speed:8000 r/min Limiting speed:4500 r/min
Type：Bearings, units and housings Roller bearings Cylindrical roller bearings Single row cylindrical roller bearings
Details： Single row cylindrical roller bearings Cylindrical roller bearings, single row
Update date：2026-08-19
Application:Roller mill,intermediate,Small air generators,glass,Other machinery,spreader series,switch,product accessories,water,hook,Industrial Adhesive
Similar models:BD-C 2315 K-AHX 2315 G BD-23156 CCK/W33-OH 3156 H NU 2315 ECP 22315 EJA/VA405 32315 B FSAF 22315 TLC 32315 PCM 202315 M NJG 2315 VH 2315 K + H 2315
BEARING POWER International Trading Co.,Ltd. specialize in NJ2315ECN2ML products，there is large inventory of SKF NJ 2315 ECN2ML Single row cylindrical roller bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the NJ 2315 ECN2ML Which SKF NJ2315ECN2ML is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
