Bearings, units and housings -- Roller bearings -- Cylindrical roller bearings -- Single row cylindrical roller bearings -- Cylindrical roller bearings, single row SKF NJ 232 ECML

NJ 232 ECML

SKF Explorer

Dimensions

d		160	mm
D		290	mm
B		48	mm
d₁	≈	206	mm
D₁	≈	249.6	mm
F		195	mm
r_1,2	min.	3	mm
r_3,4	min.	3	mm
s	max.	2.7	mm

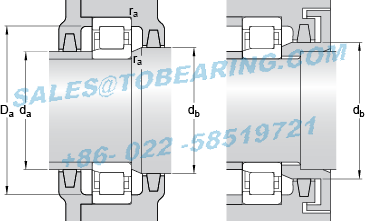

Abutment dimensions

d_a	min.	175	mm
d_a	max.	191	mm
d_b	min.	210	mm
D_a	max.	274.2	mm
r_a	max.	2.5	mm

Calculation data

Basic dynamic load rating	C	585	kN
Basic static load rating	C₀	680	kN
Fatigue load limit	P_u	72	kN
Reference speed		2400	r/min
Limiting speed		4000	r/min
Calculation factor	k_r	0.23
Limiting value	e	0.2
Axial load factor	Y	0.6

Mass

Mass bearing

14.4

Associated products

Angle ring

HJ 232 EC

Model Number: NJ 232 ECML
Inner Diameter：160mm Outer Diameter：290mm Width：48mm
Reference speed:4000 r/min Limiting speed:2400 r/min
Type：Bearings, units and housings Roller bearings Cylindrical roller bearings Single row cylindrical roller bearings
Details： Single row cylindrical roller bearings Cylindrical roller bearings, single row
Update date：2026-06-24
Application:light therapy instrument,electromagnetic clutch,physical instruments,paint paint,industrial equipment,sleep monitoring,fruit and vegetable processing,plastic molding,Hydraulic Equipment,decoration machinery,Water Monitoring
Similar models:SAW 23232 TLC 22326 CCJA/W33VA406 232/670 CA/W33 22232 CC/W33 SAW 23224 SAF 22328 23272-2CS5K/VT143 PPM 202320 AHX 2322 G NUH 2232 ECMH
BEARING POWER International Trading Co.,Ltd. specialize in NJ232ECML products，there is large inventory of SKF NJ 232 ECML Single row cylindrical roller bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the NJ 232 ECML Which SKF NJ232ECML is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
