Bearings, units and housings -- Track rollers -- Cam followers -- Cam followers -- SKF NUKRE 35 A

NUKRE 35 A

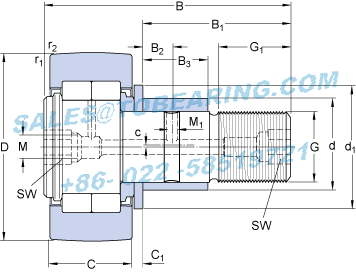

Dimensions

D		35	mm
d		20	mm
B		52	mm
C		18	mm
B₁		29.5	mm
B₂		7.8	mm
B₃		12	mm
C₁		3.8	mm
d₁		27.6	mm
G		M 16x1.5
G₁		17	mm
M		6	mm
M₁		3	mm
SW		8	mm
c		1	mm
r_1,2	min.	0.6	mm

Calculation data

Basic dynamic load rating	C	16.8	kN
Basic static load rating	C₀	17.6	kN
Fatigue load limit	P_u	2	kN
Maximum dynamic radial loads	F_r	8.65	kN
Maximum static radial loads	F_0r	12.2	kN
Limiting speed		5000	r/min

Mass

Mass cam follower

0.18

Mounting information

Recommended tighthening torque

N·m

Included products

Grease fitting			NIP A2x7.5
Hexagonal nut			M 16x1.5

Associated products

Lubrication adapter

AP 8

Model Number: NUKRE 35 A
Inner Diameter：-mm Outer Diameter：35mm Width：52mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Track rollers Cam followers Cam followers
Details： Cam followers
