-- -- -- -- SKF OKC 710

OKC 710

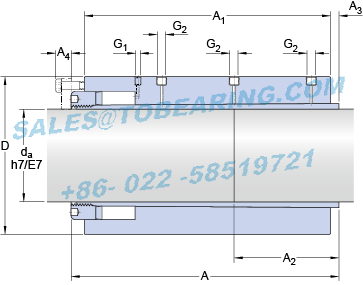

Dimensions

d_a		710	mm
D		1100	mm
��D		1.24	mm
A		1745	mm
A₁		1665	mm
A₂		760	mm
A₃		50	mm
Varying depending on shaft and coupling tolerances.
A₄		42	mm
G	4x	M20
G₁		BSP 1/4” and BSP 3/4”
G₂		BSP 3/4”

Calculation data

Maximum transmissible torque

M_t

max.

9310

kN·m

Mass

Mass coupling

7010

Mounting information

Diameter for threaded holes for lifting at both ends

G₃

M48 x 5

Required free length on one shaft for installation A + 100 mm.

Model Number: OKC 710
Inner Diameter：710mm Outer Diameter：mm Width：-mm
Reference speed:- Limiting speed:-
Type：
Details：
Update date：2026-06-24
Application:shaft milling machine,embroidery cloth,garbage disposal,chamfer,Optical Instruments,miscellaneous instruments,floor industry,Infrared Technology,spring industry,Cutting Machine,Wire grinder
