SKF PBMF16018070M1G1 Bushings, thrust washers and strips,SKF PBMF 16018070 M1G1 Plain bearings-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Plain bearings -- Bushings, thrust washers and strips -- Bushings -- SKF PBMF 16018070 M1G1

PBMF 16018070 M1G1

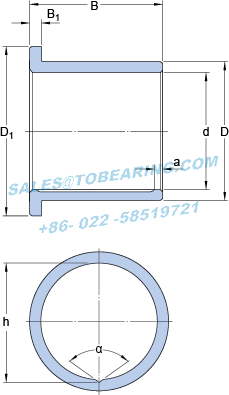

Dimensions
d 160mm
D 180mm
B 70mm
D1 195mm
B1 10mm
a 3.5mm
h 162mm
a 124°
Recommended fits
Tolerance shaft  e7
Tolerance housing  H7
Calculation data
Specific dynamic load factorK 25N/mm²
Specific static load factorK0 45N/mm²
Permissible sliding velocityvmin.0m/s
Permissible sliding velocityvmax.0.5m/s
Coefficient of frictionµmin.0.08
Coefficient of frictionµmax.0.15
Mass
Mass bushing  3.7kg
