Bearings, units and housings -- Plain bearings -- Bushings, thrust washers and strips -- Bushings -- SKF PRMF 556050

PRMF 556050

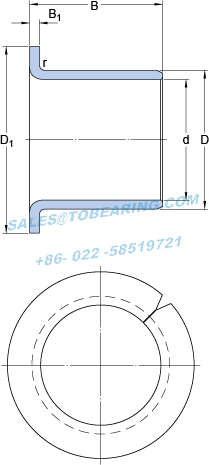

Dimensions

d		55	mm
D		60	mm
B		50	mm
D₁		70	mm
B₁		2.5	mm
r	max.	2.5	mm

Recommended fits

Tolerance shaft			f7 m/s
Tolerance housing			H7 m/s

Calculation data

Specific dynamic load factor	K		40	N/mm²
Specific static load factor	K₀		120	N/mm²
Permissible sliding velocity	v	min.	0	m/s
Permissible sliding velocity	v	max.	1	m/s
Coefficient of friction	µ	min.	0.08
Coefficient of friction	µ	max.	0.15

Mass

Mass bushing

0.2

Model Number: PRMF 556050
Inner Diameter：55mm Outer Diameter：60mm Width：50mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Plain bearings Bushings, thrust washers and strips Bushings
Details： Bushings
Update date：2026-06-24
Application:Antenna Potentials,blood cell reagent,boring bar boring bar,plastic molding,Hair styling device,leather processing,inorganic chemical,sheet industry,machining,quality inspection equipment,security equipment
Similar models:PRMF 556050 PCM 556050 M PCM 556050 E
BEARING POWER International Trading Co.,Ltd. specialize in PRMF556050 products，there is large inventory of SKF PRMF 556050 Bushings. We has been built up long-term cooperation with SKF company, could make a bulk order of the PRMF 556050 Which SKF PRMF556050 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
