Bearings, units and housings -- Track rollers -- Cam followers -- Cam followers -- SKF PWKR 35.2RS

PWKR 35.2RS

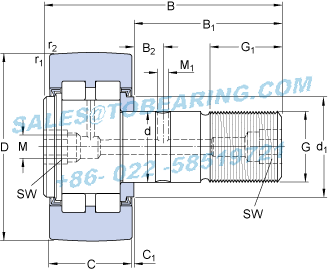

Dimensions

D		35	mm
d		16	mm
B		52	mm
C		18	mm
B₁		32.5	mm
B₂		7.8	mm
C₁		0.8	mm
d₁		20	mm
G		M 16x1.5
G₁		17	mm
M		6	mm
M₁		3	mm
SW		8	mm
r_1,2	min.	0.6	mm

Calculation data

Basic dynamic load rating	C	11.9	kN
Basic static load rating	C₀	11.4	kN
Fatigue load limit	P_u	1.2	kN
Maximum dynamic radial loads	F_r	8.65	kN
Maximum static radial loads	F_0r	12.5	kN
Limiting speed		5000	r/min

Mass

Mass cam follower

0.16

Mounting information

Recommended tighthening torque

N·m

Included products

Grease fitting			NIP A2x7.5
Hexagonal nut			M 16x1.5

Associated products

Lubrication adapter

AP 8

Model Number: PWKR 35.2RS
Inner Diameter：-mm Outer Diameter：35mm Width：52mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Track rollers Cam followers Cam followers
Details： Cam followers
Update date：2026-06-24
Application:turret industry,Machine tool accessories,Switch,stamping die and its equipment,climb ladder,Water Monitoring,powder metallurgy,industrial supplies,universal category,lathe,Machine tools
Similar models:SAW 23520 x 3.3/8 TLC FYT 35 TF/VA228 SIL 35 ESX-2LS P 80 R-35 RM 313535 B NK 73/35 SAW 23530 x 5.1/4 T RPNA 20/35 SAW 23538 x 6.7/8 HN 3520
BEARING POWER International Trading Co.,Ltd. specialize in PWKR35.2RS products，there is large inventory of SKF PWKR 35.2RS Cam followers. We has been built up long-term cooperation with SKF company, could make a bulk order of the PWKR 35.2RS Which SKF PWKR35.2RS is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
