Bearings, units and housings -- Ball bearings -- Angular contact ball bearings -- Four-point contact ball bearings -- Angular contact ball bearings, four-point contact ball bearings SKF QJ 1064 N2MA

QJ 1064 N2MA

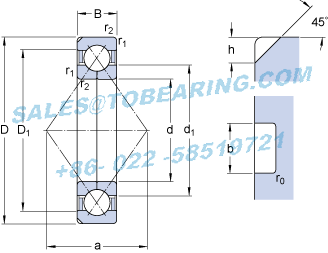

Dimensions

d		320	mm
D		480	mm
B		74	mm
d₁	≈	376	mm
D₁	≈	424	mm
a		280	mm
h		12.5	mm
b		15	mm
r₀		2.5	mm
r_1,2	min.	5	mm

Abutment dimensions

d_a	min.	338	mm
D_a	max.	462	mm
r_a	max.	3	mm

Calculation data

Basic dynamic load rating	C	715	kN
Basic static load rating	C₀	1530	kN
Fatigue load limit	P_u	32	kN
Limiting speed		2000	r/min
Calculation factor	e	0.95
Calculation factor	X	0.6
Calculation factor	Y₀	0.58
Calculation factor	Y₁	0.66
Calculation factor	Y₂	1.07

Mass

Mass bearing

Model Number: QJ 1064 N2MA
Inner Diameter：320mm Outer Diameter：480mm Width：74mm
Reference speed:2000 r/min Limiting speed:-
Type：Bearings, units and housings Ball bearings Angular contact ball bearings Four-point contact ball bearings
Details： Four-point contact ball bearings Angular contact ball bearings, four-point contact ball bearings
Update date：2026-06-24
Application:Control,knitted fabrics,Forklift industry,textile machinery,shaft milling machine,training beds etc,car,hardware,Insect Capture,spring industry,altimeter etc
Similar models:NJ 1064 MA QJ 1064 MA NU 1064 MA NU 1064 MP QJ 1064 N2MA HJ 1064
BEARING POWER International Trading Co.,Ltd. specialize in QJ1064N2MA products，there is large inventory of SKF QJ 1064 N2MA Four-point contact ball bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the QJ 1064 N2MA Which SKF QJ1064N2MA is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
