Bearings, units and housings -- Ball bearings -- Angular contact ball bearings -- Four-point contact ball bearings -- Angular contact ball bearings, four-point contact ball bearings SKF QJ 219 N2PHAS

QJ 219 N2PHAS

SKF Explorer

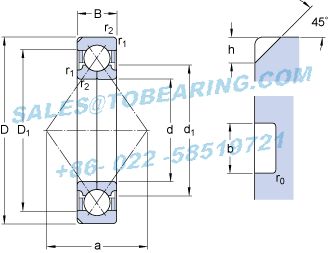

Dimensions

d		95	mm
D		170	mm
B		32	mm
d₁	≈	120	mm
D₁	≈	145	mm
a		93	mm
h		8.1	mm
b		6.5	mm
r₀		1	mm
r_1,2	min.	2.1	mm

Abutment dimensions

d_a	min.	107	mm
D_a	max.	158	mm
r_a	max.	2	mm

Calculation data

Basic dynamic load rating	C	212	kN
Basic static load rating	C₀	232	kN
Fatigue load limit	P_u	8.5	kN
Limiting speed		6700	r/min
Calculation factor	A	137.71
Calculation factor	e	0.95
Calculation factor	X	0.6
Calculation factor	Y₀	0.58
Calculation factor	Y₁	0.66
Calculation factor	Y₂	1.07

Mass

Mass bearing

3.35

Model Number: QJ 219 N2PHAS
Inner Diameter：95mm Outer Diameter：170mm Width：32mm
Reference speed:6700 r/min Limiting speed:-
Type：Bearings, units and housings Ball bearings Angular contact ball bearings Four-point contact ball bearings
Details： Four-point contact ball bearings Angular contact ball bearings, four-point contact ball bearings
Update date：2026-06-24
Application:tobacco machinery,preservation equipment,squeeze machine etc,sleep monitoring,CNC,flow control valve,engineering machinery,diagnostic test paper,transportation equipment,glass processing machine,office equipment
Similar models:32219/DF 22219 EK 32219 NJ 2219 ECP 219-2Z N 219 ECP 30219 6219/HC5C3 QJ 219 N2PHAS 6219/C3VL0241
BEARING POWER International Trading Co.,Ltd. specialize in QJ219N2PHAS products，there is large inventory of SKF QJ 219 N2PHAS Four-point contact ball bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the QJ 219 N2PHAS Which SKF QJ219N2PHAS is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
