Bearings, units and housings -- Super-precision bearings -- Angular contact ball bearings -- Angular contact ball bearings, super-precision -- SKF S7004 ACD/HCP4A
S7004 ACD/HCP4A
Dimensions
| d | 20 | mm | |
| D | 42 | mm | |
| B | 12 | mm | |
| d1 | 27.1 | mm | |
| d2 | 27.1 | mm | |
| D2 | 37 | mm | |
| r1,2 | min. | 0.6 | mm |
| r3,4 | min. | 0.3 | mm |
| a | 13.3 | mm |

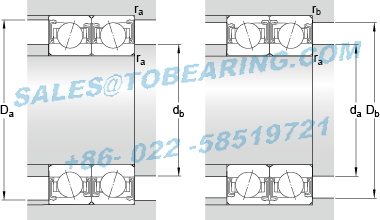

Abutment dimensions
| da | min. | 23.2 | mm |
| da | max. | 26.6 | mm |
| db | min. | 23.2 | mm |
| db | max. | 26.6 | mm |
| Da | max. | 38.8 | mm |
| Db | max. | 40 | mm |
| ra | max. | 0.6 | mm |
| rb | max. | 0.3 | mm |
Calculation data
| Basic dynamic load rating | C | 8.32 | kN | |
| Basic static load rating | C0 | 4.15 | kN | |
| Fatigue load limit | Pu | 0.173 | kN | |
| Attainable speed for grease lubrication | 45000 | r/min | ||
| Ball diameter | Dw | 6.35 | mm | |
| Number of balls | z | 12 | ||
| Preload and stiffness (back-to-back, face-to-face) | ||||
| Preload class A | GA | 50 | N | |
| Static axial stiffness, preload class A | 60 | N/µm | ||
| Preload class B | GB | 100 | N | |
| Static axial stiffness, preload class B | 77 | N/µm | ||
| Preload class C | GC | 200 | N | |
| Static axial stiffness, preload class C | 100 | N/µm | ||
| Preload class D | GD | 400 | N | |
| Static axial stiffness, preload class D | 133 | N/µm | ||
| Calculation factors | ||||
| Calculation factor | f | 1.03 | ||
| Calculation factor | f1 | 0.99 | ||
| Calculation factor | f2A | 1 | ||
| Calculation factor | f2B | 1.02 | ||
| Calculation factor | f2C | 1.05 | ||
| Calculation factor | f2D | 1.08 | ||
| Calculation factor | fHC | 1.02 | ||
| Calculation factor | e | 0.68 | ||
| Calculation factor (single, tandem) | Y2 | 0.87 | ||
| Calculation factor (single, tandem) | Y0 | 0.38 | ||
| Calculation factor (single, tandem) | X2 | 0.41 | ||
| Calculation factor (back-to-back, face-to-face) | Y1 | 0.92 | ||
| Calculation factor (back-to-back, face-to-face) | Y2 | 1.41 | ||
| Calculation factor (back-to-back, face-to-face) | Y0 | 0.76 | ||
| Calculation factor (back-to-back, face-to-face) | X2 | 0.67 | ||
Mass
| Mass bearing | 0.06 | kg |
