Bearings, units and housings -- Super-precision bearings -- Angular contact ball bearings -- Angular contact ball bearings, super-precision -- SKF S7008 CE/HCP4A
S7008 CE/HCP4A
Dimensions
| d | 40 | mm | |
| D | 68 | mm | |
| B | 15 | mm | |
| d1 | 49.7 | mm | |
| d2 | 47.6 | mm | |
| D2 | 60.85 | mm | |
| r1,2 | min. | 1 | mm |
| r3,4 | min. | 0.6 | mm |
| a | 14.8 | mm |

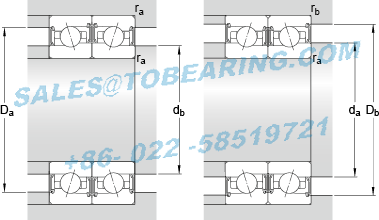

Abutment dimensions
| da | min. | 44.6 | mm |
| da | max. | 49.1 | mm |
| db | min. | 44.6 | mm |
| db | max. | 47 | mm |
| Da | max. | 63.4 | mm |
| Db | max. | 63.8 | mm |
| ra | max. | 1 | mm |
| rb | max. | 0.6 | mm |
Calculation data
| Basic dynamic load rating | C | 12.4 | kN | |
| Basic static load rating | C0 | 7.65 | kN | |
| Fatigue load limit | Pu | 0.32 | kN | |
| Attainable speed for grease lubrication | 36000 | r/min | ||
| Ball diameter | Dw | 7.144 | mm | |
| Number of balls | z | 19 | ||
| Preload and stiffness (back-to-back, face-to-face) | ||||
| Preload class A | GA | 65 | N | |
| Static axial stiffness, preload class A | 38 | N/µm | ||
| Preload class B | GB | 200 | N | |
| Static axial stiffness, preload class B | 60 | N/µm | ||
| Preload class C | GC | 390 | N | |
| Static axial stiffness, preload class C | 81 | N/µm | ||
| Calculation factors | ||||
| Calculation factor | f | 1.06 | ||
| Calculation factor | f1 | 1 | ||
| Calculation factor | f2A | 1 | ||
| Calculation factor | f2B | 1.03 | ||
| Calculation factor | f2C | 1.05 | ||
| Calculation factor | fHC | 1.01 | ||
| Calculation factor | f0 | 8.1 | ||
Mass
| Mass bearing | 0.17 | kg |
