Bearings, units and housings -- Super-precision bearings -- Angular contact ball bearings -- Angular contact ball bearings, super-precision -- SKF S71913 ACE/HCP4A
S71913 ACE/HCP4A
Dimensions
| d | 65 | mm | |
| D | 90 | mm | |
| B | 13 | mm | |
| d1 | 72.75 | mm | |
| d2 | 70.7 | mm | |
| D2 | 84.7 | mm | |
| r1,2 | min. | 1 | mm |
| r3,4 | min. | 0.3 | mm |
| a | 25.8 | mm |

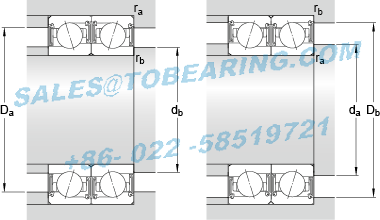

Abutment dimensions
| da | min. | 69.6 | mm |
| da | max. | 72.2 | mm |
| db | min. | 67 | mm |
| db | max. | 70.1 | mm |
| Da | max. | 85.4 | mm |
| Db | max. | 88 | mm |
| ra | max. | 1 | mm |
| rb | max. | 0.3 | mm |
Calculation data
| Basic dynamic load rating | C | 15.6 | kN | |
| Basic static load rating | C0 | 11.8 | kN | |
| Fatigue load limit | Pu | 0.5 | kN | |
| Attainable speed for grease lubrication | 22000 | r/min | ||
| Ball diameter | Dw | 7.938 | mm | |
| Number of balls | z | 24 | ||
| Preload and stiffness (back-to-back, face-to-face) | ||||
| Preload class A | GA | 142 | N | |
| Static axial stiffness, preload class A | 134 | N/µm | ||
| Preload class B | GB | 425 | N | |
| Static axial stiffness, preload class B | 201 | N/µm | ||
| Preload class C | GC | 850 | N | |
| Static axial stiffness, preload class C | 264 | N/µm | ||
| Calculation factors | ||||
| Calculation factor | f | 1.19 | ||
| Calculation factor | f1 | 0.98 | ||
| Calculation factor | f2A | 1 | ||
| Calculation factor | f2B | 1.04 | ||
| Calculation factor | f2C | 1.08 | ||
| Calculation factor | fHC | 1.01 | ||
| Calculation factor | e | 0.68 | ||
| Calculation factor (single, tandem) | Y2 | 0.87 | ||
| Calculation factor (single, tandem) | Y0 | 0.38 | ||
| Calculation factor (single, tandem) | X2 | 0.41 | ||
| Calculation factor (back-to-back, face-to-face) | Y1 | 0.92 | ||
| Calculation factor (back-to-back, face-to-face) | Y2 | 1.41 | ||
| Calculation factor (back-to-back, face-to-face) | Y0 | 0.76 | ||
| Calculation factor (back-to-back, face-to-face) | X2 | 0.67 | ||
Mass
| Mass bearing | 0.17 | kg |
