Bearings, units and housings -- Bearing housings -- Split pillow blocks, SAF and SAW series (inch dimensions) -- SAF and SAW pillow blocks with bearings with a cylindrical bore -- SKF SAF 1215

SAF 1215

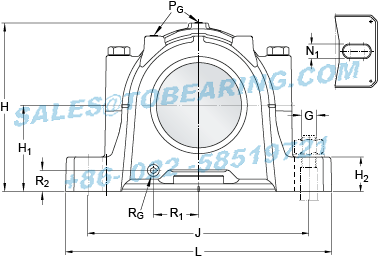

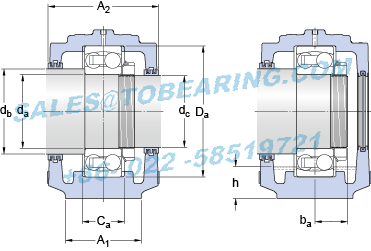

Dimensions

d_a		75	mm
d_b		87.313	mm
d_c		71.438	mm
D_a		130	mm
C_a		37.008	mm
A₁		79.375	mm
A₂		118.666	mm
b_a		30.163	mm
H		157.559	mm
H₁		82.55	mm
H₂		28.575	mm
J	min.	219.075	mm
J	max.	244.475	mm
L		285.75	mm
N₁		19.05	mm
Threaded holes
R₁		46.038	mm
R₂		21.431	mm
R_G		1/4 NPT
P_G		1/8 NPT
Oil level
h		31.75	mm

Included products

Housing			SAF 215
Bearing			1215
Check availability of other clearance classes (e.g. C3)
Lock nut			AN 15
Lock washer			W 15
Stabilizing ring			2 x SR-15-0
Labyrinth ring (d_b shaft position)			LOR 79
Labyrinth ring (d_c shaft position)			LOR 46

Associated products

End plug (suffix Y)

EPR 8

Speed ratings

Bearing limiting speed

4800

r/min

Recommended safe loads

P_60°	75.6	kN
P_90°	45.4	kN
P_120°	28	kN
P_150°	25.4	kN
P_180°	30.2	kN
P_a	19.6	kN

Mass

Mass pillow block

12.2

Mounting information

Cap bolt		2 x 1/2-13 UNC
Cap bolt recommended tightening torque		102	N·m
Cap bolt, SAE grade		5
Appropriate attachment bolt size	G	0.625	in
Initial grease fill		136.08	g

Model Number: SAF 1215
Inner Diameter：75mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Split pillow blocks, SAF and SAW series (inch dimensions) SAF and SAW pillow blocks with bearings with a cylindrical bore
Details： SAF and SAW pillow blocks with bearings with a cylindrical bore
