Bearings, units and housings -- Bearing housings -- Split pillow blocks, SAF and SAW series (inch dimensions) -- SAF and SAW pillow blocks with bearings with a cylindrical bore -- SKF SAFS 22226 T

SAFS 22226 T

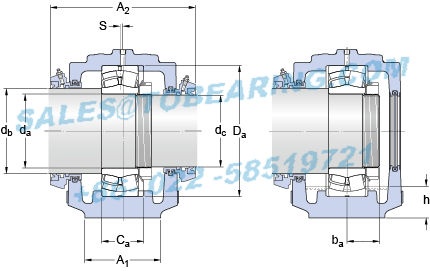

Dimensions

d_a		130	mm
d_b		149.225	mm
d_c		125.412	mm
D_a		230	mm
C_a		73.812	mm
A₁		130.175	mm
A₂		268.288	mm
S		4.763	mm
b_a		57.944	mm
H		292.1	mm
H₁		152.4	mm
H₂		60.325	mm
J	min.	371.475	mm
J	max.	406.4	mm
J₁		82.55	mm
L		466.725	mm
N₁		23.813	mm
Threaded holes
R₁		79.375	mm
R₂		36.513	mm
R_G		1/2 NPT
P_G		1/4 NPT
Oil level
h		59.531	mm

Included products

Housing			SAFS 226
Bearing			22226 E
Check availability of other clearance classes (e.g. C3)
Lock nut			AN 26
Lock washer			W 26
Stabilizing ring			SR-26-0
Taconite seal (d_b shaft position)			TER 136
Taconite seal (d_c shaft position)			TER 122

Associated products

End plug (suffix Y)

EPR 27

Speed ratings

Max. speed for Taconite seal

520

r/min

Recommended safe loads

P_60°	189	kN
P_90°	113	kN
P_120°	73.8	kN
P_150°	68.1	kN
P_180°	84.5	kN
P_a	54.7	kN

Mass

Mass pillow block

79.4

Mounting information

Cap bolt		4 x 1-8 UNC
Cap bolt recommended tightening torque		799.9	N·m
Cap bolt, SAE grade		5
Eye bolt		2 x 3/8-16 UNC
Appropriate attachment bolt size	G	0.875	in
Initial grease fill		765.45	g

Model Number: SAFS 22226 T
Inner Diameter：130mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Split pillow blocks, SAF and SAW series (inch dimensions) SAF and SAW pillow blocks with bearings with a cylindrical bore
Details： SAF and SAW pillow blocks with bearings with a cylindrical bore
Update date：2026-06-24
Application:fruit and vegetable processing,Optical detection,ultra-quiet generators,medical equipment,Industrial,pressure control valve,Storage Tool,medical Equipment,clean stationery,mobile toilet,sanitation facilities
Similar models:BD-22226 EK-AHX 3126 SAF 22226 TLC BD-22226 EK-H 3126 22226 E SSAFS 22226 T 22226 EK SAF 22226 SAFS 22226 SAFS 22226 T
BEARING POWER International Trading Co.,Ltd. specialize in SAFS22226T products，there is large inventory of SKF SAFS 22226 T SAF and SAW pillow blocks with bearings with a cylindrical bore. We has been built up long-term cooperation with SKF company, could make a bulk order of the SAFS 22226 T Which SKF SAFS22226T is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
