Bearings, units and housings -- Plain bearings -- Spherical plain bearings and rod ends -- Rod ends with a male thread -- SKF SAKAC 5 M

SAKAC 5 M

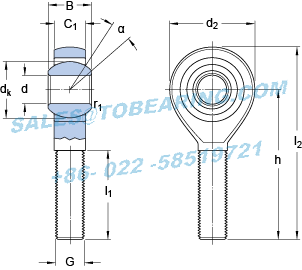

Dimensions

d		5	mm
d₂	max.	19	mm
B		8	mm
G		M 5
C₁	max.	7.5	mm
h		33	mm
a		13	°
d_k		11.1	mm
l₁	min.	19	mm
l₂	max.	44	mm
r₁	min.	0.3	mm

Calculation data

Basic dynamic load rating	C	3.25	kN
Basic static load rating	C₀	4.8	kN
Specific dynamic load factor	K	50	N/mm²
Material constant	K_M	330

Mass

Mass rod end

0.013

Model Number: SAKAC 5 M
Inner Diameter：5mm Outer Diameter：-mm Width：8mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Plain bearings Spherical plain bearings and rod ends Rod ends with a male thread
Details： Rod ends with a male thread
Update date：2026-06-25
Application:mathematical instruments,container finishing,circulating pump,car shock absorber,ventilation equipment,Vacuum generator,insect experimental analysis instrument,teaching equipment,wall materials,raw material accessories,Traffic Fire Protection Equipment Security equipment
Similar models:22216 E NU 1088 MA SAFS 22236 TLC IR 10x14x16 7060 BGM K 25x30x20 6307-2Z PSMF 162212 A51 6209-2Z/VA208 22222 EK
BEARING POWER International Trading Co.,Ltd. specialize in SAKAC5M products，there is large inventory of SKF SAKAC 5 M Rod ends with a male thread. We has been built up long-term cooperation with SKF company, could make a bulk order of the SAKAC 5 M Which SKF SAKAC5M is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
