Bearings, units and housings -- Plain bearings -- Spherical plain bearings and rod ends -- Rod ends with a female thread -- SKF SI 8 E

SI 8 E

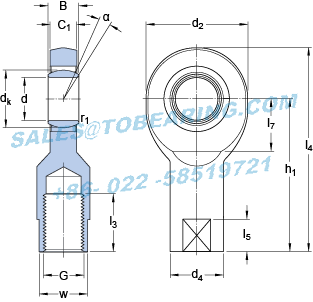

Dimensions

d		8	mm
d₂	max.	25	mm
B		8	mm
G	6H	M 8
C₁	max.	6.5	mm
h₁		36	mm
a		15	°
d_k		13	mm
d₄	≈	13	mm
l₃	min.	15	mm
l₄	max.	50	mm
l₅	≈	9	mm
l₇	min.	11	mm
w	h14	11	mm
r₁	min.	0.3	mm

Calculation data

Basic dynamic load rating	C	5.5	kN
Basic static load rating	C₀	12.9	kN
Specific dynamic load factor	K	100	N/mm²
Material constant	K_M	330

Mass

Mass rod end

0.039

Model Number: SI 8 E
Inner Diameter：8mm Outer Diameter：-mm Width：8mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Plain bearings Spherical plain bearings and rod ends Rod ends with a female thread
Details： Rod ends with a female thread
Update date：2026-06-25
Application:Air,respirator,Tool,vertical processing,welding equipment,Medium and large motor,quality inspection equipment,Textile Industry Accessories and Accessories,sucker industry,industry test,Internal thread type
Similar models:7004 CD/P4A SAF 22634 x 6 D/W R0-2Z 7213 BECBM SAF 1222 STO 10 X SNL 3038 TURT SY 505 M SSAFS 22538 T 7030 CD/HCP4AL
BEARING POWER International Trading Co.,Ltd. specialize in SI8E products，there is large inventory of SKF SI 8 E Rod ends with a female thread. We has been built up long-term cooperation with SKF company, could make a bulk order of the SI 8 E Which SKF SI8E is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
