Bearings, units and housings -- Plain bearings -- Spherical plain bearings and rod ends -- Rod ends with a female thread -- SKF SIL 25 ES

SIL 25 ES

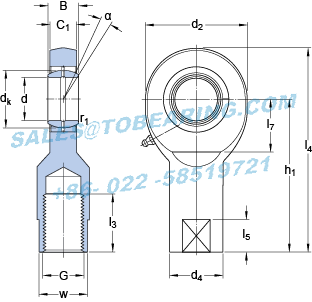

Dimensions

d		25	mm
d₂	max.	65	mm
B		20	mm
G	6H	M 24x2
C₁	max.	18	mm
h₁		94	mm
a		7	°
d_k		35.5	mm
d₄	≈	35	mm
l₃	min.	36	mm
l₄	max.	128	mm
l₅	≈	18	mm
l₇	min.	30	mm
w	h14	30	mm
r₁	min.	0.6	mm

Calculation data

Basic dynamic load rating	C	48	kN
Basic static load rating	C₀	90	kN
Specific dynamic load factor	K	100	N/mm²
Material constant	K_M	330

Mass

Mass rod end

0.65

Model Number: SIL 25 ES
Inner Diameter：25mm Outer Diameter：-mm Width：20mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Plain bearings Spherical plain bearings and rod ends Rod ends with a female thread
Details： Rod ends with a female thread
