Bearings, units and housings -- Plain bearings -- Spherical plain bearings and rod ends -- Rod ends with a female thread -- SKF SILJ 12 E

SILJ 12 E

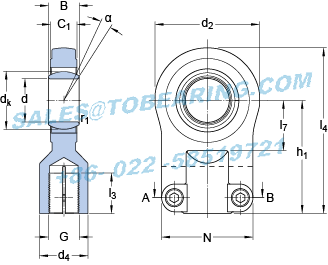

Dimensions

d		12	mm
d₂	max.	36	mm
B		10	mm
G	6H	M 10x1.25
C₁	max.	8	mm
h₁		42	mm
a		10	°
d_k		18	mm
d₄	≈	17	mm
l₃	min.	15	mm
l₄	max.	62	mm
l₇	min.	16	mm
N	max.	40	mm
N₁	max.	13	mm
r₁	min.	0.3	mm

Bolts with internal hexagon

Size bolt with internal hexagon			M 6
Tightening torque bolt with internal hexagon			10	N·m

Calculation data

Basic dynamic load rating	C	10.8	kN
Basic static load rating	C₀	21.2	kN
Specific dynamic load factor	K	100	N/mm²
Material constant	K_M	330

Mass

Mass rod end

0.14

Model Number: SILJ 12 E
Inner Diameter：12mm Outer Diameter：-mm Width：10mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Plain bearings Spherical plain bearings and rod ends Rod ends with a female thread
Details： Rod ends with a female thread
Update date：2026-06-24
Application:electric hydraulic lifting platform,crimping tools,Infrared Technology,Power equipment,Liposuction device,SPA equipment,wheel lathe,rock drilling machinery,wall industry,marine analysis,food / grain / food equipment
Similar models:PBMF 10012050 M1G1 PRM 121415 NJ 412 NU 212 ECM/C3VL0241 812/560 M 51201 IR 120x130x30 BD-23122 CCK/W33-AHX 3122 PSM 182412 A51 51214
BEARING POWER International Trading Co.,Ltd. specialize in SILJ12E products，there is large inventory of SKF SILJ 12 E Rod ends with a female thread. We has been built up long-term cooperation with SKF company, could make a bulk order of the SILJ 12 E Which SKF SILJ12E is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
