Bearings, units and housings -- Bearing housings -- Split plummer block housings, SNL 30, 31 and 32 series -- Large SNL series for bearings on an adapter sleeve, with oil seals -- SKF SNL 3136 ATURA

SNL 3136 ATURA

Appropriate products

Bearing (basic designation)			C 3136 K
Adapter sleeve			H 3136 L
Locating ring			2 x FRB 10/300

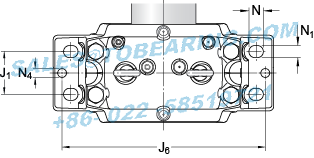

Dimensions

d_a		160	mm
C_a		116	mm
D_a		300	mm
A		235	mm
A₁		190	mm
H		353	mm
H₁		180	mm
H₂		75	mm
J		450	mm
J₁		110	mm
L		530	mm
N		34	mm
N₁		28	mm
s		15	mm
Shaft end
b_a	min.	83	mm
b_a	max.	108	mm
b_b		78	mm
b_c		113.5	mm
Dowel pins
J₆		490	mm
N₄	max.	20	mm

Appertaining products

Oil seal			TSD 3136 U
End cover			ETS 3136 R

Breaking loads, housing

P_0°	1900	kN
P_55°	2400	kN
P_90°	1150	kN
P_120°	850	kN
P_150°	760	kN
P_180°	950	kN
P_a	620	kN

Yield point, cap bolts

Q_120°	1800	kN
Q_150°	1040	kN
Q_180°	900	kN

Mass

Mass housing

77.5

Mounting information

Cap bolt, size		M 24x140
Cap bolt, rec. tightening torque		350	N·m
Appropriate attachment bolt, size	G	24	mm
Appropriate attachment bolt, rec. tightening torque		665	N·m
Eye bolt, size		2 x M 16
Oil level, min.		50	mm
Oil level, max.		61	mm

Model Number: SNL 3136 ATURA
Inner Diameter：160mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Split plummer block housings, SNL 30, 31 and 32 series Large SNL series for bearings on an adapter sleeve, with oil seals
Details： Large SNL series for bearings on an adapter sleeve, with oil seals
