Bearings, units and housings -- Bearing housings -- Split plummer block housings, SNLN 30 series -- SNLN 30 series for bearings on an adapter sleeve -- SKF SNLN 3030

SNLN 3030

Appropriate products

Bearing			23030-2CS5K/VT143
Adapter sleeve			H 3030 E
Locating ring			2 x FRB 15/225

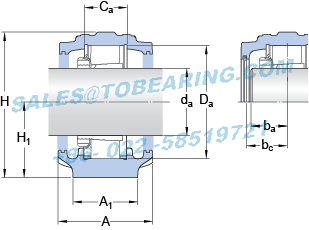

Dimensions

d_a		135	mm
C_a		86	mm
D_a		225	mm
A		190	mm
A₁		130	mm
H		290	mm
H₁		150	mm
H₂		50	mm
J		380	mm
L		445	mm
N		35	mm
N₁		28	mm
Shaft end
b_a		57	mm
b_c		82	mm
Dowel pins
J₆		414	mm
J₇		46	mm
N₄	max.	12	mm
Seal stand-out
A_2L		12.5	mm
A_2T		37.5	mm

Appropriate seals and end cover

TSN 3030 C

TSN 3030 L

TSN 3030 A

2 x TSN 3030 S

2 x TSN 3030 ND

ASNH 530

Breaking loads, housing

P_55°	780	kN
P_90°	470	kN
P_120°	350	kN
P_150°	310	kN
P_180°	390	kN
P_a	130	kN

Yield point, cap bolts

Q_120°	900	kN
Q_150°	520	kN
Q_180°	450	kN

Mass

Mass housing

Mounting information

Cap bolt, size		M 24 x 130
Cap bolt, rec. tightening torque		350	N·m
Appropriate attachment bolt, size	G	24	mm
Appropriate attachment bolt, rec. tightening torque		665	N·m
Eye bolt, size		M10
Initial grease fill, 20%		500	g
Initial grease fill, 40%		900	g

Model Number: SNLN 3030
Inner Diameter：135mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Split plummer block housings, SNLN 30 series SNLN 30 series for bearings on an adapter sleeve
Details： SNLN 30 series for bearings on an adapter sleeve
Update date：2026-01-20
Application:security equipment,Spectrum Products,Forging machine,storage shelves,aerial work platform,Pneumatic Control Valves,bathroom facilities,garden machinery,pneumatic Pump,Other Machine Tools,Water Monitoring
Similar models:HA 3030 30307 AHX 3030 SAF 23030 KA x 5.3/16 SNW 3030x5.3/16 SNW 3030x5.1/8 GB 3030 13030 BD-23030 CCK/W33-H 3030 30309/DF
BEARING POWER International Trading Co.,Ltd. specialize in SNLN3030 products，there is large inventory of SKF SNLN 3030 SNLN 30 series for bearings on an adapter sleeve. We has been built up long-term cooperation with SKF company, could make a bulk order of the SNLN 3030 Which SKF SNLN3030 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
