Bearings, units and housings -- Bearing housings -- Split plummer block housings, SONL series -- Split plummer block housings, SONL series for bearings on an adapter sleeve -- SKF SONL 248-548
SONL 248-548
Appropriate products
| Bearing (basic designation) | ||||
| Adapter sleeve |
H 3148/8.15/16
|
|||
| Locating ring |
2 x FRB 14/440
|
|||

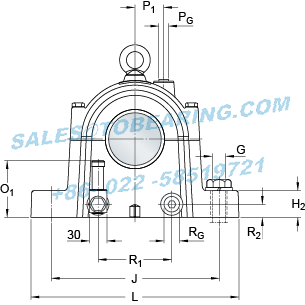

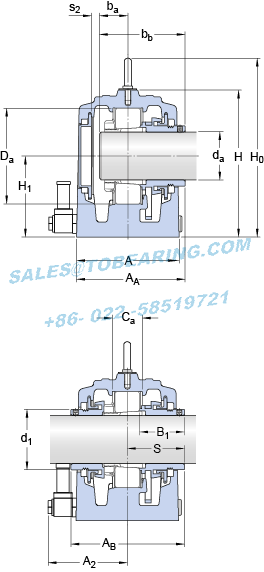

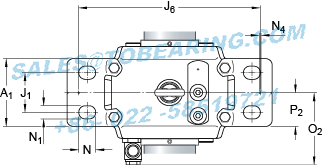

Dimensions
| da | 227.013 | mm | |
| Ca | 148 | mm | |
| Da | 440 | mm | |
| A | 368 | mm | |
| A1 | 290 | mm | |
| A2 | 244 | mm | |
| AA | 394 | mm | |
| AB | 420 | mm | |
| d1 | 270 | mm | |
| B1 | 150 | mm | |
| H | 625 | mm | |
| H0 | 734 | mm | |
| H1 | 340 | mm | |
| H2 | 100 | mm | |
| J | 740 | mm | |
| J1 | 190 | mm | |
| L | 900 | mm | |
| N | 50 | mm | |
| N1 | 42 | mm | |
| S | 210 | mm | |
| Shaft end | |||
| ba | 105 | mm | |
| bb | 315 | mm | |
| s2 | 45.5 | mm | |
| Dowel pins | |||
| J6 | 800 | mm | |
| N4 | max. | 20 | mm |
| Circulating oil lubrication system | |||
| PG | G 3/4 | ||
| P1 | 110 | mm | |
| P2 | 115 | mm | |
| RG | G 1.1/2 | ||
| R1 | 400 | mm | |
| R2 | 41 | mm | |
| O1 | 216 | mm | |
| O2 | 244 | mm | |
Appropriate seals and end cover
| Seal kit for a through shaft |
TSO 548/8.15/16
|
|||
| Seal kit for a shaft end |
TSO 548/8.15/16 A
|
|||
| End cover |
ECO 248-548
|
|||
Breaking loads, housing
| P55° | 6350 | kN | |
| P90° | 2550 | kN | |
| P120° | 1750 | kN | |
| P150° | 1600 | kN | |
| P180° | 2100 | kN | |
| Pa | 840 | kN |
Yield point, cap bolts
| Q120° | 2860 | kN | |
| Q150° | 1650 | kN | |
| Q180° | 1430 | kN |
Mass
| Mass housing | 456 | kg |
Mounting information
| Cap bolt, size | M 30x200 | |||
| Cap bolt, rec. tightening torque | 400 | N·m | ||
| Appropriate attachment bolt, size | G | 36 | mm | |
| Appropriate attachment bolt, rec. tightening torque | 2280 | N·m | ||
| Eye bolt, size |
M 24
|
|||
| Oil level, min. | 113 | mm | ||
| Oil fill, min. | 4.8 | l | ||
| Oil level, max. | 155 | mm | ||
| Oil fill, max. | 6.9 | l | ||
