Bearings, units and housings -- Bearing housings -- Split pillow blocks, SAF and SAW series (inch dimensions) -- SAF and SAW pillow blocks with bearings on an adapter sleeve -- SKF SSAFS 22532 x 5.1/2 T

SSAFS 22532 x 5.1/2 T

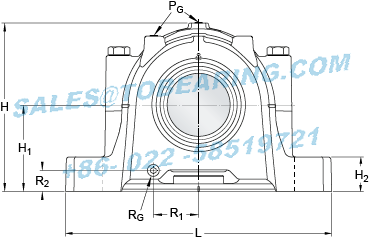

Dimensions

d_a	139.7	mm
D_a	289.999	mm
C_a	89.789	mm
A₁	158.75	mm
A₂	288.925	mm
S	4.763	mm
b_a	70.644	mm
H	338.137	mm
H₁	169.875	mm
H₂	66.675	mm
L	558.8	mm
Threaded holes
R₁	104.775	mm
R₂	33.337	mm
R_G	3/4 NPT
P_G	1/4 NPT
Oil level
h	51.594	mm

Included products

Housing			SSAFS 532
Bearing			22232 CCK/W33
Adapter sleeve assembly			SNW 32x5.1/2
Stabilizing ring			SR-32-0
Taconite seal			TER 131
Check availability of bearings with other clearance classes (e.g. C3)

Associated products

End plug (suffix Y)

EPR 16

Speed ratings

Max. speed for Taconite seal

560

r/min

Recommended safe loads

P_60°	226	kN
P_90°	136	kN
P_120°	85.9	kN
P_150°	78.3	kN
P_180°	94.3	kN
P_a	38.5	kN

Mass

Mass pillow block

132

Mounting information

Cap bolt	4 x 3/4-10 UNC
Cap bolt recommended tightening torque	359.3	N·m
Cap bolt, SAE grade	5
Eye bolt	2 x 3/8-16 UNC
Initial grease fill	793.8	g

Model Number: SSAFS 22532 x 5.1/2 T
Inner Diameter：139.7mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Split pillow blocks, SAF and SAW series (inch dimensions) SAF and SAW pillow blocks with bearings on an adapter sleeve
Details： SAF and SAW pillow blocks with bearings on an adapter sleeve
Update date：2026-06-24
Application:education model Instruments,stacker lift platform,lathe,wire industry,Textile Accessories,Equipment,Film machine,lifting chain,mobile toilet,dye pigments,ventilator anesthesia machine etc
Similar models:SAF 22532 x 5.1/2 TLC SSAFS 22532 x 5.3/8 TLC SSAFS 22532 T SAFS 22532 x 5.3/8 TLC SSAFS 22532 x 5.3/8 T SAF 22532 x 5.3/8 SSAFS 22532 TLC SSAFS 22532 x 5.1/2 SSAFS 22532 SAFS 22532 x 5.1/2
