Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing plummer block units -- Y-bearing plummer block units SKF SY 1.1/2 FM

SY 1.1/2 FM

Material

Cast iron

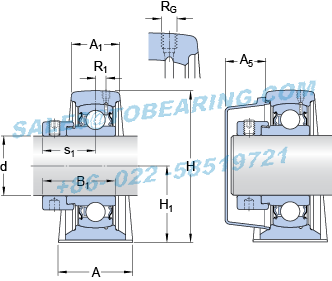

Dimensions

d		38.1	mm
A		48	mm
A₁		30	mm
A₅		26	mm
B₁		43.2	mm
H		99	mm
H₁		49.2	mm
H₂		19	mm
J		135.5	mm
J	max.	146	mm
J	min.	125	mm
L		175	mm
N		24.5	mm
N₁		14	mm
s₁		32.7	mm
Threaded hole
R_G		1/4-28 UNF
R₁		3.5	mm
R_a		45	°
Grease fitting
D_N		6.5	mm
SW_N		7	mm
G_N		1/4-28 SAE-LT
Dowel pins
J₆		161	mm
J₇		17	mm
N₄		4	mm

Calculation data

Basic dynamic load rating	C	30.7	kN
Basic static load rating	C₀	19	kN
Fatigue load limit	P_u	0.8	kN
Limiting speed		4800	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

1.85

Mounting information

Hexagonal key size for grub screw	N	4.763	mm
Recommended tightening torque for grub screw		16.5	N·m
Recommended diameter for attachment bolts, mm	G	12	mm
Recommended diameter for attachment bolts, inch	G	0.5	in

Appertaining products

Housing			SY 508 M
Bearing			YET 208-108

Appropriate products

End cover

ECY 208

Model Number: SY 1.1/2 FM
Inner Diameter：38.1mm Outer Diameter：-mm Width：-mm
Reference speed:4800 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing plummer block units
Details： Y-bearing plummer block units Y-bearing plummer block units
Update date：2026-06-25
Application:tray industry,industrial equipment,key lock,experimental equipment,fabric products,Handling machinery and various industrial machinery,plastic molding,sheet industry,relay,ventilation fans,mechanical and electrical
Similar models:7022 ACD/HCP4A SNW 10x1.1/2 W 04 FSAF 22615 x 2.3/8 T 7006 ACE/HCP4AL W 6001-2RS1 S7022 CD/HCP4A SNL 3176 PSMF 253525 A51 607-RSH
