SY 1.11/16 TDW

Material  Cast iron

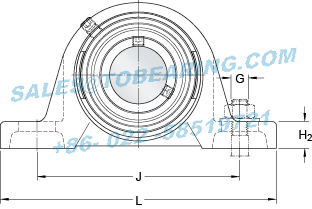

    Dimensions
    d 42.862mm
    A 48mm
    A1 32mm
    A5 23mm
    B 49.2mm
    H 107mm
    H1 54mm
    H2 21mm
    J 143.5mm
    Jmax.152mm
    Jmin.135mm
    L 187mm
    N 22.5mm
    N1 14mm
    s1 30.2mm
    Dowel pins
    J6 173mm
    J7 17mm
    N4 4mm
    Calculation data
    Basic dynamic load ratingC 33.2kN
    Basic static load ratingC0 21.6kN
    Fatigue load limitPu 0.915kN
    Limiting speed  850r/min

    (with shaft tolerance h6)

    Mass
    Mass bearing unit  2.25kg
    Mounting information
    Hexagonal key size for grub screwN 3.969mm
    Recommended tightening torque for grub screw  6.5N·m
    Recommended diameter for attachment bolts, mmG 12mm
    Recommended diameter for attachment bolts, inchG 0.5in
    Appertaining products
    Housing
    SY 509 M/VZ033
    Bearing
    Appropriate products
    End cover
