Bearings, units and housings -- Engineered products -- High temperature bearings and bearing units -- Y-bearing plummer block units, for high temperature applications -- SKF SY 20 TF/VA201

SY 20 TF/VA201

Running in required

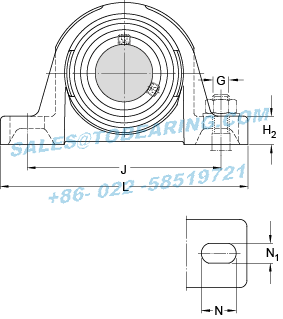

Dimensions

d	20	mm
A	32	mm
A₁	22	mm
H	64	mm
H₁	33.3	mm
H₂	14	mm
L	127	mm
J	97	mm
N	20.5	mm
N₁	11.5	mm
B	31	mm
s₁	18.3	mm

Calculation data

Basic dynamic load rating	C		12.7	kN
Basic static load rating	C₀		6.55	kN
Limiting speed			130	r/min
Limiting temperature	T	max.	250	°C

Mass

Mass bearing unit

0.57

Mounting information

Grub (set) screw	G₂	M6x0.75
Hexagonal key size for grub screw	N	3	mm
Recommended tightening torque for grub screw		4	N·m
Attachment bolts, recommended metric size	G	10	mm

Included products

Bearing

YAR 204-2FW/VA201

Model Number: SY 20 TF/VA201
Inner Diameter：20mm Outer Diameter：-mm Width：-mm
Reference speed:130 r/min Limiting speed:-
Type：Bearings, units and housings Engineered products High temperature bearings and bearing units Y-bearing plummer block units, for high temperature applications
Details： Y-bearing plummer block units, for high temperature applications
Update date：2026-06-24
Application:light therapy instrument,bathroom facilities,Hydraulic Equipment,Textile Accessories,centrifugal pump,supporting facilities,Pneumatic Control Valves,Control,Forming mold,Laser Devices,hydraulic connector
Similar models:RNAO 50x62x20 PRM 303420 YEL 206-101-2F 6208/VA201 N 220 ECP 6020-2Z 32032 X FYT 35 TF/VA201 BC2B 320299 7206 BEGAY
BEARING POWER International Trading Co.,Ltd. specialize in SY20TF/VA201 products，there is large inventory of SKF SY 20 TF/VA201 Y-bearing plummer block units, for high temperature applications. We has been built up long-term cooperation with SKF company, could make a bulk order of the SY 20 TF/VA201 Which SKF SY20TF/VA201 is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
