Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing plummer block units -- Y-bearing plummer block units SKF SY 35 TR

SY 35 TR

Material

Cast iron

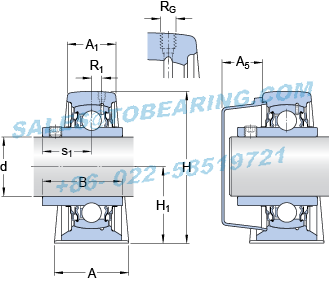

Dimensions

d		35	mm
A		45	mm
A₁		27	mm
A₅		22	mm
B		42.9	mm
H		93	mm
H₁		47.6	mm
H₂		19	mm
J		126	mm
J	max.	133	mm
J	min.	119	mm
L		160	mm
N		21	mm
N₁		14	mm
s₁		25.4	mm
Threaded hole
R_G		1/4-28 UNF
R₁		3	mm
R_a		45	°
Grease fitting
D_N		6.5	mm
SW_N		7	mm
G_N		1/4-28 SAE-LT
Dowel pins
J₆		146	mm
J₇		15.5	mm
N₄		4	mm

Calculation data

Basic dynamic load rating	C	25.5	kN
Basic static load rating	C₀	15.3	kN
Fatigue load limit	P_u	0.655	kN
Limiting speed		3200	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

1.45

Mounting information

Hexagonal key size for grub screw	N	3	mm
Recommended tightening torque for grub screw		4	N·m
Recommended diameter for attachment bolts, mm	G	12	mm
Recommended diameter for attachment bolts, inch	G	0.5	in

Appertaining products

Housing			SY 507 M
Bearing			YAR 207-2RF

Appropriate products

End cover

ECY 207

Model Number: SY 35 TR
Inner Diameter：35mm Outer Diameter：-mm Width：-mm
Reference speed:3200 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing plummer block units
Details： Y-bearing plummer block units Y-bearing plummer block units
