Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing plummer block units -- Y-bearing plummer block units SKF SY 50 WDW

SY 50 WDW

Material

Cast iron

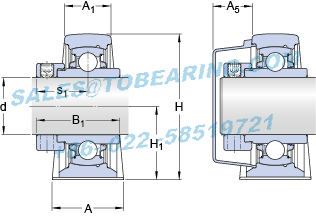

Dimensions

d		50	mm
A		54	mm
A₁		34	mm
A₅		29.5	mm
B₁		62.7	mm
H		114	mm
H₁		57.2	mm
H₂		22	mm
J		157	mm
J	max.	165	mm
J	min.	149	mm
L		203	mm
N		26	mm
N₁		18	mm
s₁		38.1	mm
Dowel pins
J₆		187	mm
J₇		19	mm
N₄		4	mm

Calculation data

Basic dynamic load rating	C	35.1	kN
Basic static load rating	C₀	23.2	kN
Fatigue load limit	P_u	0.98	kN
Limiting speed		800	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

2.75

Mounting information

Hexagonal key size for grub screw	N	5	mm
Recommended tightening torque for grub screw		16.5	N·m
Recommended diameter for attachment bolts, mm	G	16	mm
Recommended diameter for attachment bolts, inch	G	0.625	in

Appertaining products

Housing			SY 510 M/VZ033
Bearing			YELAG 210

Appropriate products

End cover

ECY 210

Model Number: SY 50 WDW
Inner Diameter：50mm Outer Diameter：-mm Width：-mm
Reference speed:800 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing plummer block units
Details： Y-bearing plummer block units Y-bearing plummer block units
Update date：2026-06-24
Application:reducer,industrial equipment,extruder,product accessories,Handling machinery and various industrial machinery,education model Instruments,Hydraulic Equipment,Gripper Swing,Generator,food / grain / food equipment,Other Machine Tools
Similar models:PWM 190210250 SAF 1507 x 1.1/8 T NCF 18/750 V NNF 5018 ADA-2LSV NNF 5040 ADA-2LSV PBM 5060100 M1G1 718/750 AGMB AXW 50 FYTB 50 FM K 240x250x42
BEARING POWER International Trading Co.,Ltd. specialize in SY50WDW products，there is large inventory of SKF SY 50 WDW Y-bearing plummer block units. We has been built up long-term cooperation with SKF company, could make a bulk order of the SY 50 WDW Which SKF SY50WDW is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
