Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing plummer block units -- Plummer block housings for Y-bearings SKF SY 511 M

SY 511 M

Material

Cast iron

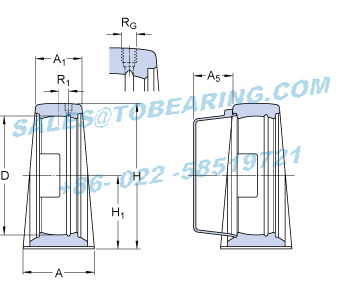

Dimensions

D		100	mm
H₁		63.5	mm
A		60	mm
A₁		40	mm
A₅		34	mm
H		126	mm
H₂		24	mm
J		171.5	mm
J	max.	181	mm
J	min.	162	mm
L		219	mm
N		27.5	mm
N₁		18	mm
Threaded hole
R_G		1/4-28 UNF
R₁		4.5	mm
R_a		45	°
Grease fitting
D_N		6.5	mm
SW_N		7	mm
G_N		1/4-28 SAE-LT
Dowel pins
J₆		201	mm
J₇		21	mm
N₄		4	mm

Mass

Mass housing

2.35

Mounting information

Recommended diameter for attachment bolts, mm	G		16	mm
Recommended diameter for attachment bolts, inch	G		0.625	in

Appropriate products

Appropriate end cover

ECY 211

Model Number: SY 511 M
Inner Diameter：-mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing plummer block units
Details： Y-bearing plummer block units Plummer block housings for Y-bearings
Update date：2026-06-24
Application:metal mold,drawing die,root canal filling,turret industry,Spectral Products,Blood coagulation reagent,pump,Energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving energy saving,Anesthetic Equipment,shaft milling machine,equipment
Similar models:511/1060 M 511/1000 F SAF 22511 x 1.13/16 SAF 1511 x 1.13/16 51136 M 51100 V/HR11T1 51108 V/HR22T2 PCM 100105115 M 51105 V/HR11Q1 511/600 F
BEARING POWER International Trading Co.,Ltd. specialize in SY511M products，there is large inventory of SKF SY 511 M Y-bearing plummer block units. We has been built up long-term cooperation with SKF company, could make a bulk order of the SY 511 M Which SKF SY511M is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
