SKF SY60WF Y-bearing units (ball bearing units),SKF SY 60 WF Bearing units-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing plummer block units -- Y-bearing plummer block units SKF SY 60 WF

SY 60 WF

Material  Cast iron

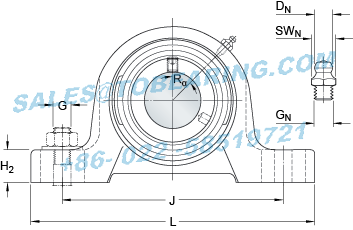

    Dimensions
    d 60mm
    A 60mm
    A1 42mm
    A5 35.5mm
    B1 77.8mm
    H 137.5mm
    H1 69.9mm
    H2 26.5mm
    J 190.5mm
    Jmax.202mm
    Jmin.179mm
    L 240mm
    N 29.5mm
    N1 18mm
    s1 46.8mm
    Threaded hole
    RG 1/4-28 UNF
    R1 5.5mm
    Ra 45°
    Grease fitting
    DN 6.5mm
    SWN 7mm
    GN 1/4-28 SAE-LT
    Dowel pins
    J6 222mm
    J7 21mm
    N4 4mm
    Calculation data
    Basic dynamic load ratingC 52.7kN
    Basic static load ratingC0 36kN
    Fatigue load limitPu 1.53kN
    Limiting speed  3400r/min

    (with shaft tolerance h6)

    Mass
    Mass bearing unit  4.6kg
    Mounting information
    Hexagonal key size for grub screwN 5mm
    Recommended tightening torque for grub screw  16.5N·m
    Recommended diameter for attachment bolts, mmG 16mm
    Recommended diameter for attachment bolts, inchG 0.625in
    Appertaining products
    Housing
    Bearing
    Appropriate products
    End cover
