Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing plummer block units -- Y-bearing plummer block units SKF SYK 35 LD

SYK 35 LD

Material  Composite

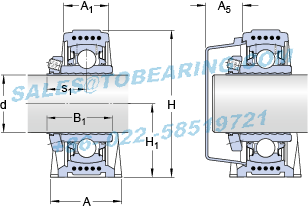

    Dimensions
    d 35mm
    A 45mm
    A1 27mm
    A5 22mm
    B1 39.5mm
    H 93.5mm
    H1 47.6mm
    H2 19mm
    J 126mm
    Jmax.133mm
    Jmin.119mm
    L 164mm
    N 21.5mm
    N1 14.5mm
    s1 24.3mm

    Values for B1 and s1 before the grub screw is tightened (sleeve and inner ring bore at starting position).

    Calculation data
    Basic dynamic load ratingC 25.5kN
    Basic static load ratingC0 15.3kN
    Fatigue load limitPu 0.655kN
    Limiting speed  1100r/min
    Mass
    Mass bearing unit  0.68kg
    Mounting information
    Hexagonal key size for grub screwN 3mm
    Recommended tightening torque for grub screw  7.4N·m
    Appropriate SKF mounting kit  626830
    Recommended diameter for attachment bolts, mmG 12mm
    Recommended diameter for attachment bolts, inchG 0.5in
    Appertaining products
    Housing
    Bearing
    Appropriate products
    End cover
