Bearings, units and housings -- Bearing units -- Roller bearing units -- Metric roller bearing units, SYNT and FYNT series (SKF ConCentra) -- Roller bearing plummer block units, for metric shafts SKF SYNT 65 FW

SYNT 65 FW

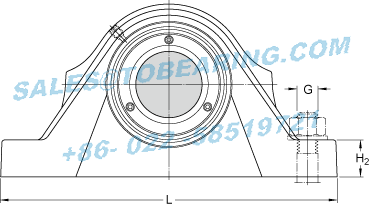

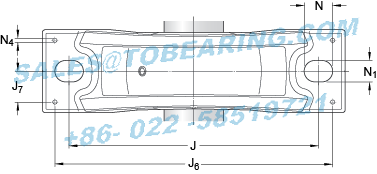

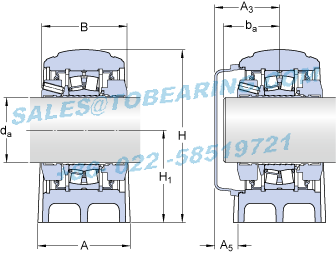

Dimensions

d_a		65	mm
A		80	mm
B		71	mm
H		158	mm
H₁		80	mm
H₂		30	mm
J		230	mm
L		280	mm
N		24	mm
N₁		18	mm
Shaft end
A₃		73	mm
A₅		35.5	mm
b_a	min.	38	mm
b_a	max.	65	mm
Dowel pins
J₆		254	mm
J₇		29	mm
N₄	max.	8	mm

Calculation data

Basic dynamic load rating	C	193	kN
Basic static load rating	C₀	216	kN
Fatigue load limit	P_u	24	kN
Limiting speed		2700	r/min
Calculation factor	e	0.24
Calculation factor	Y₁	2.8
Calculation factor	Y₂	4.2
Bearing mean diameter	d_m	92.5	mm
Basic bearing designation		22213 E

Load carrying ability

Breaking loads
P_0°	290	kN
P_55°	380	kN
P_90°	230	kN
P_120°	155	kN
P_150°	140	kN
P_180°	210	kN
Axial holding power
P_a	20	kN

Mass

Mass bearing unit

8.7

Mounting information

Attachment bolt diameter	G	16	mm
Tightening torque for attachment bolts		200	N·m
Grub screws		4 x M 6
Tightening torque for grub screws		8	N·m

Appropriate products

End cover

ECY 213

Model Number: SYNT 65 FW
Inner Diameter：65mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing units Roller bearing units Metric roller bearing units, SYNT and FYNT series (SKF ConCentra)
Details： Metric roller bearing units, SYNT and FYNT series (SKF ConCentra) Roller bearing plummer block units, for metric shafts
