Bearings, units and housings -- Bearing units -- Roller bearing units -- Metric roller bearing units, SYNT and FYNT series (SKF ConCentra) -- Roller bearing plummer block units, for metric shafts SKF SYNT 70 L

SYNT 70 L

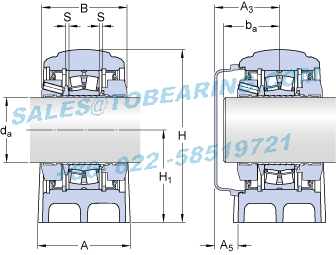

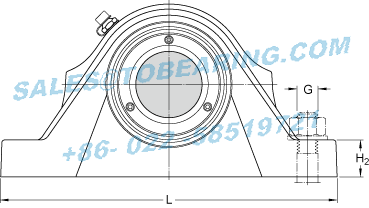

Dimensions

d_a		70	mm
A		90	mm
B		71	mm
H		176	mm
H₁		95	mm
H₂		32	mm
J		260	mm
L		315	mm
N		28	mm
N₁		22	mm
S		2.5	mm
Shaft end
A₃		80	mm
A₅		38.5	mm
b_a	min.	38	mm
b_a	max.	70	mm

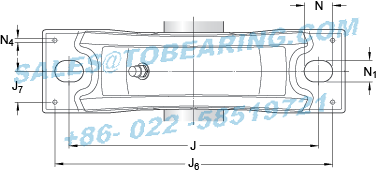

Dowel pins
J₆		290	mm
J₇		32.5	mm
N₄	max.	8	mm

Calculation data

Basic dynamic load rating	C	208	kN
Basic static load rating	C₀	228	kN
Fatigue load limit	P_u	25.5	kN
Limiting speed		2600	r/min
Calculation factor	e	0.22
Calculation factor	Y₁	3
Calculation factor	Y₂	4.6
Bearing mean diameter	d_m	97.5	mm
Basic bearing designation		22214 E

Load carrying ability

Breaking loads
P_0°	350	kN
P_55°	400	kN
P_90°	240	kN
P_120°	160	kN
P_150°	145	kN
P_180°	215	kN
Axial holding power
P_a	20	kN

Mass

Mass bearing unit

Mounting information

Attachment bolt diameter	G	20	mm
Tightening torque for attachment bolts		385	N·m
Grub screws		4 x M 6
Tightening torque for grub screws		8	N·m
Grease quantity for relubrication		8	g

Appropriate products

End cover

ECY 214
