SKF SYWK1.1/4YTA Y-bearing units (ball bearing units),SKF SYWK 1.1/4 YTA Bearing units-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing plummer block units -- Y-bearing plummer block units SKF SYWK 1.1/4 YTA

SYWK 1.1/4 YTA

Material  Composite for food and beverage

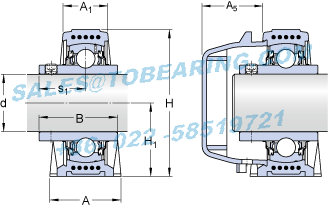

    Dimensions
    d 31.75mm
    A 45mm
    A1 27mm
    A5 32.5mm
    B 42.9mm
    H 93mm
    H1 47.6mm
    H2 19mm
    J 126mm
    Jmax.133mm
    Jmin.119mm
    L 164mm
    N 21.5mm
    N1 14.5mm
    s1 25.4mm
    Calculation data
    Basic dynamic load ratingC 25.5kN
    Basic static load ratingC0 15.3kN
    Fatigue load limitPu 0.655kN
    Limiting speed  3200r/min

    (with shaft tolerance h6)

    Mass
    Mass bearing unit  0.77kg
    Mounting information
    Hexagonal key size for grub screwN 3.969mm
    Recommended tightening torque for grub screw  6.5N·m
    Recommended diameter for attachment bolts, mmG 12mm
    Recommended diameter for attachment bolts, inchG 0.5in
    Appertaining products
    Housing
    Bearing
    YAR 207-104-2RF/VE495
    Appropriate products
    End cover
