Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing plummer block units -- Y-bearing plummer block units SKF SYWK 1.15/16 LTA

SYWK 1.15/16 LTA

Material

Composite for food and beverage

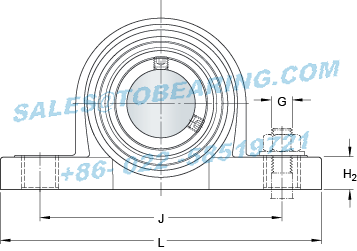

Dimensions

d		49.213	mm
A		60	mm
A₁		37	mm
A₅		42.4	mm
B		51.6	mm
H		114	mm
H₁		57.2	mm
H₂		23	mm
J		159	mm
J	max.	162	mm
J	min.	156	mm
L		206	mm
N		20	mm
N₁		17	mm
s₁		32.6	mm

Calculation data

Basic dynamic load rating	C	35.1	kN
Basic static load rating	C₀	23.2	kN
Fatigue load limit	P_u	0.98	kN
Limiting speed		2200	r/min

(with shaft tolerance h6)

Mass

Mass bearing unit

1.35

Mounting information

Hexagonal key size for grub screw	N	4.763	mm
Recommended tightening torque for grub screw		16.5	N·m
Recommended diameter for attachment bolts, mm	G	16	mm
Recommended diameter for attachment bolts, inch	G	0.625	in

Appertaining products

Housing			SYWK 510 L
Bearing			YAR 210-115-2RF/VE495

Appropriate products

End cover

ECL 210

Model Number: SYWK 1.15/16 LTA
Inner Diameter：49.213mm Outer Diameter：-mm Width：-mm
Reference speed:2200 r/min Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing plummer block units
Details： Y-bearing plummer block units Y-bearing plummer block units
