SKF 312844/VJ202 Cylindrical roller bearings,SKF 312844/VJ202 Roller bearings-BEARINGPOWER Co.,Ltd.
Bearings, units and housings -- Roller bearings -- Cylindrical roller bearings -- Four-row cylindrical roller bearings -- Cylindrical roller bearings, four-row SKF 312844/VJ202

312844/VJ202

Design
Design variant/feature  BC4.9/W33WI

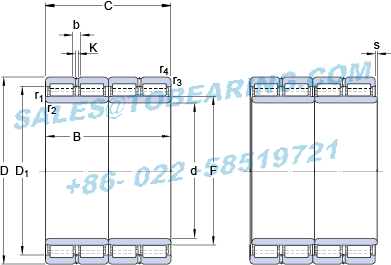

Dimensions
d 529.91mm
D 870mm
B 670mm
C 670mm
D1≈751mm
F 615mm
b 22.3mm
K 12mm
r1,2min.7.5mm
r3,4min.7.5mm
Calculation data
Basic dynamic load ratingC 16800kN
Basic static load ratingC0 33500kN
Fatigue load limitPu 2450kN
Calculation factorkr 680
Mass
Mass bearing  1660kg
