Bearings, units and housings -- Super-precision bearings -- Angular contact ball bearings -- Angular contact ball bearings, super-precision -- SKF 7016 CE/P4AL
7016 CE/P4AL
Dimensions
| d | 80 | mm | |
| D | 125 | mm | |
| B | 22 | mm | |
| d1 | 95.83 | mm | |
| d2 | 93 | mm | |
| D1 | 109.17 | mm | |
| b | 2.8 | mm | |
| C1 | 11.1 | mm | |
| C2 | 3.8 | mm | |
| C3 | 3.8 | mm | |
| r1,2 | min. | 1.1 | mm |
| r3,4 | min. | 0.6 | mm |
| a | 24.9 | mm |

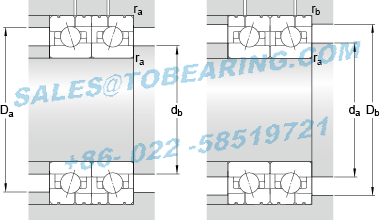

Abutment dimensions
| da | min. | 86 | mm |
| db | min. | 86 | mm |
| Da | max. | 119 | mm |
| Db | max. | 120.8 | mm |
| ra | max. | 1 | mm |
| rb | max. | 0.6 | mm |
| dn | 98.5 | mm |
Calculation data
| Basic dynamic load rating | C | 33.8 | kN | |
| Basic static load rating | C0 | 28 | kN | |
| Fatigue load limit | Pu | 1.18 | kN | |
| Attainable speed for grease lubrication | 15000 | r/min | ||
| Attainable speed for oil-air lubrication | 24000 | r/min | ||
| Ball diameter | Dw | 11.112 | mm | |
| Number of balls | z | 25 | ||
| Reference grease quantity | Gref | 12 | cm³ | |
| Preload and stiffness (back-to-back, face-to-face) | ||||
| Preload class A | GA | 180 | N | |
| Static axial stiffness, preload class A | 72 | N/µm | ||
| Preload class B | GB | 550 | N | |
| Static axial stiffness, preload class B | 114 | N/µm | ||
| Preload class C | GC | 1090 | N | |
| Static axial stiffness, preload class C | 157 | N/µm | ||
| Calculation factors | ||||
| Calculation factor | f | 1.1 | ||
| Calculation factor | f1 | 1 | ||
| Calculation factor | f2A | 1 | ||
| Calculation factor | f2B | 1.03 | ||
| Calculation factor | f2C | 1.05 | ||
| Calculation factor | fHC | 1 | ||
| Calculation factor | f0 | 9.4 | ||
Mass
| Mass bearing | 0.86 | kg |
