Bearings, units and housings -- Roller bearings -- CARB toroidal roller bearings -- CARB toroidal roller bearings -- SKF BD-C 2244 K-OH 3144 H

C 2244 K + OH 3144 H

SKF Explorer

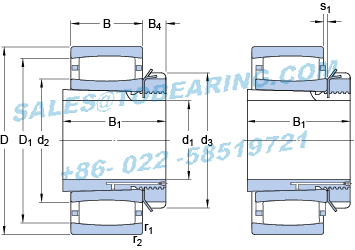

Dimensions

d₁		200	mm
D		400	mm
B		108	mm
B₁		161	mm
d₂	≈	259	mm
d₃		280	mm
D₁	≈	350	mm
B₄		35	mm
s₁	max.	20.5	mm
r_1,2	min.	4	mm

Abutment dimensions

d_a	max.	298	mm
d_b	min.	233	mm
D_a	min.	321	mm
D_a	max.	383	mm
B_a	min.	22	mm
C_a	min.	1.7	mm
r_a	max.	3	mm

A negative value for C_a is theoretical.

Calculation data

Basic dynamic load rating	C	2000	kN
Basic static load rating	C₀	2500	kN
Fatigue load limit	P_u	208	kN
Reference speed		1500	r/min
Limiting speed		2000	r/min
Misalignment factor	k₁	0.113
Operating clearance factor	k₂	0.101

Mass

Mass bearing + sleeve

Model Number: BD-C 2244 K-OH 3144 H
Inner Diameter：200mm Outer Diameter：400mm Width：108mm
Reference speed:2000 r/min Limiting speed:1500 r/min
Type：Bearings, units and housings Roller bearings CARB toroidal roller bearings CARB toroidal roller bearings
Details： CARB toroidal roller bearings
Update date：2026-06-25
Application:Cleaning equipment,laser devices,chemical raw materials and reagents,noise reduction equipment,Sensors,Laser Measurements,rolling machine,Equipment,labor insurance,transportation equipment,industry test
Similar models:22244-2CS5/VT143 BD-C 2244 K-OH 3144 H BD-22244 CCK/W33-AOH 2244 332244 B 332244 BD-22244-2CS5K/VT143-OH 3144 H SAF 22244 AOH 2244 32244/DF SSAFS 22244
BEARING POWER International Trading Co.,Ltd. specialize in BD-C2244K-OH3144H products，there is large inventory of SKF BD-C 2244 K-OH 3144 H CARB toroidal roller bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the BD-C 2244 K-OH 3144 H Which SKF BD-C2244K-OH3144H is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
