Bearings, units and housings -- Bearing housings -- Flanged housings, FNL series -- FNL series for bearings on an adapter sleeve -- SKF FNL 518 B

FNL 518 B

Appropriate products

Bearing (basic designation)			2218 K
Adapter sleeve			H 318
Locating ring			FRB 10/160
Contact seal			2 x TFL 518

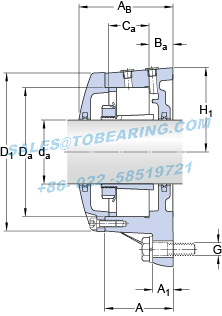

Dimensions

d_a		80	mm
C_a		50	mm
D_a		160	mm
A		85	mm
A₁		25	mm
A_B		118	mm
B_a		30	mm
D		196	mm
H		210	mm
H₁		105	mm
J		170	mm
L		210	mm
N		18	mm
Dowel pins
J₅		95	mm
J₆		60	mm
N₄	max.	8	mm

Breaking loads, housing

P₁	170	kN
P₂	170	kN
P₃	490	kN

Mass

Mass housing

Mounting information

Cover bolt, size		4 x M 8x25
Cover bolt, rec. tightening torque		24	N·m
Appropriate attachment bolt, size	G	16	mm
Appropriate attachment bolt, rec. tightening torque		200	N·m
Initial grease fill, 20%		250	g
Initial grease fill, 40%		400	g

Model Number: FNL 518 B
Inner Diameter：80mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing housings Flanged housings, FNL series FNL series for bearings on an adapter sleeve
Details： FNL series for bearings on an adapter sleeve
Update date：2026-06-25
Application:medical equipment,granulator,scientific instruments,surgical instruments,office equipment,molding machine,medical equipment,drawing die,thin metal materials,instrument,hydraulic pressure gauge
Similar models:FSNL 518-615 SAF 1518 x 3.1/4 FSAF 1518 x 3.1/16 T PWM 150165180 314518 B FSAF 1518 T SAF 1518 SAF 1518 x 3.1/16 T SSAFS 22518 x 3.1/16 FSAF 22518 x 3.1/4 T
BEARING POWER International Trading Co.,Ltd. specialize in FNL518B products，there is large inventory of SKF FNL 518 B FNL series for bearings on an adapter sleeve. We has been built up long-term cooperation with SKF company, could make a bulk order of the FNL 518 B Which SKF FNL518B is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
