Bearings, units and housings -- Bearing units -- Y-bearing units (ball bearing units) -- Y-bearing flanged units -- 3-bolt bracket flanged housings for Y-bearings SKF FYAWK 506 L

FYAWK 506 L

Material

Composite for food and beverage

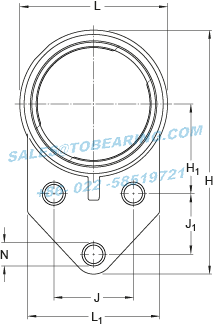

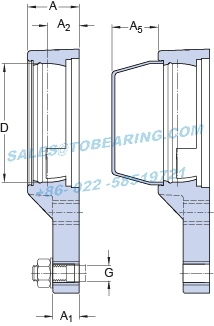

Dimensions

D	62	mm
A	32	mm
A₁	13.3	mm
A₂	19.3	mm
A₅	26.9	mm
J	47.6	mm
J₁	31.8	mm
H	138	mm
H₁	52.4	mm
L	83	mm
L₁	76	mm
N	10.7	mm

Mass

Mass housing

0.17

Mounting information

Recommended diameter for attachment bolts, mm	G		10	mm
Recommended diameter for attachment bolts, inch	G		0.375	in

Appropriate products

End cover

ECL 206

Model Number: FYAWK 506 L
Inner Diameter：-mm Outer Diameter：-mm Width：-mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing units Y-bearing units (ball bearing units) Y-bearing flanged units
Details： Y-bearing flanged units 3-bolt bracket flanged housings for Y-bearings
