Bearings, units and housings -- Roller bearings -- Cylindrical roller bearings -- Single row cylindrical roller bearings -- Cylindrical roller bearings, single row SKF NJ 2312 ECN1ML

NJ 2312 ECN1ML

SKF Explorer

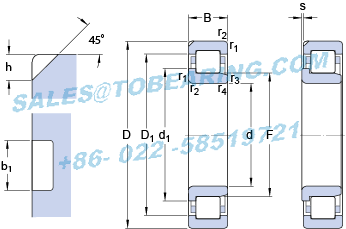

Dimensions

d		60	mm
D		130	mm
B		46	mm
d₁	≈	84.3	mm
D₁	≈	109.2	mm
F		77	mm
b₁		6.5	mm
h		8.1	mm
r_1,2	min.	2.1	mm
r_3,4	min.	2.1	mm
s	max.	3.6	mm

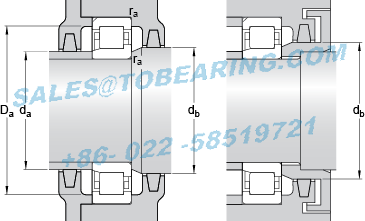

Abutment dimensions

d_a	min.	72	mm
d_a	max.	74	mm
d_b	min.	87	mm
D_a	max.	118.1	mm
r_a	max.	2	mm

Calculation data

Basic dynamic load rating	C	260	kN
Basic static load rating	C₀	265	kN
Fatigue load limit	P_u	34.5	kN
Reference speed		5600	r/min
Limiting speed		10000	r/min
Calculation factor	k_r	0.38
Limiting value	e	0.3
Axial load factor	Y	0.4

Mass

Mass bearing

3.08

Associated products

Angle ring

HJ 2312 EC

Model Number: NJ 2312 ECN1ML
Inner Diameter：60mm Outer Diameter：130mm Width：46mm
Reference speed:10000 r/min Limiting speed:5600 r/min
Type：Bearings, units and housings Roller bearings Cylindrical roller bearings Single row cylindrical roller bearings
Details： Single row cylindrical roller bearings Cylindrical roller bearings, single row
Update date：2026-08-24
Application:car steering pin,paint paint,nail products,industrial fans,suction nozzle,Microwave Equipment,multi-knife lathe,tube,garden machinery,gear grinding machine,Anesthetic Equipment
Similar models:BD-23122 CCK/W33-H 3122 32312 B BD-23120 CCK/W33-AHX 3120 BD-23126 CCK/W33-AHX 3126 NUP 2312 ECP HJ 2312 EC 23124 CCK/W33 BD-23124 CCK/W33-AHX 3124 2312 23128 CC/W33
BEARING POWER International Trading Co.,Ltd. specialize in NJ2312ECN1ML products，there is large inventory of SKF NJ 2312 ECN1ML Single row cylindrical roller bearings. We has been built up long-term cooperation with SKF company, could make a bulk order of the NJ 2312 ECN1ML Which SKF NJ2312ECN1ML is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
