Bearings, units and housings -- Bearing accessories -- Adapter sleeves -- Adapter sleeves for metric shafts -- SKF OH 3172 H

OH 3172 H

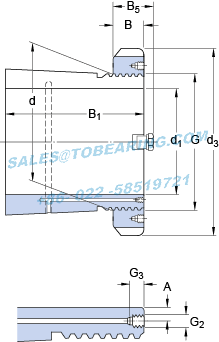

Dimensions

d₁	340	mm
d	360	mm
d₃	460	mm
B₁	259	mm
B	58	mm
B₅	75	mm
G	Tr 360x5
G₂	M 6
G₃	9	mm
A	4	mm

Mass

Mass adapter sleeve assembly

Included products

Lock nut			HM 3172
Locking device			MS 3172-68

Associated products

Hydraulic nut

HMV 72E

Model Number: OH 3172 H
Inner Diameter：340mm Outer Diameter：460mm Width：259mm
Reference speed:- Limiting speed:-
Type：Bearings, units and housings Bearing accessories Adapter sleeves Adapter sleeves for metric shafts
Details： Adapter sleeves for metric shafts
Update date：2026-06-24
Application:miscellaneous instruments,Forming mold,plastic molding,food sterilization,woodworking machinery,electromagnet,Broadcasting System,Antenna Industry,Industrial,ECG,Rolling mill gear box
Similar models:C 3172 KM 23172 CC/W33 23172-2CS5K/VT143 BD-23172-2CS5K/VT143-OH 3172 HE HME 3172 OH 3172 H SNL 3172 TURA BD-22272 CAK/W33-OH 3172 H 23172 CCK/W33 HM 3172
BEARING POWER International Trading Co.,Ltd. specialize in OH3172H products，there is large inventory of SKF OH 3172 H Adapter sleeves for metric shafts. We has been built up long-term cooperation with SKF company, could make a bulk order of the OH 3172 H Which SKF OH3172H is the most authentic, must choose BEARING POWER, what a whole variety, reasonable price, guaranteed quality, prompt delivery via Global express. Any inquiry, never hesitate to E-mail or call +86-022-58519721 to contact us.
