Bearings, units and housings -- Bearing housings -- Split pillow blocks, SAF and SAW series (inch dimensions) -- SAF and SAW pillow blocks with bearings with a cylindrical bore -- SKF SAF 1220 T

SAF 1220 T

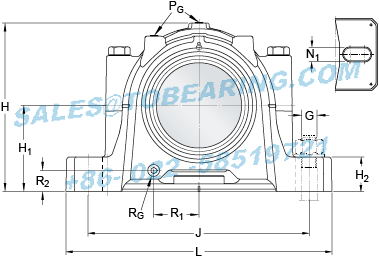

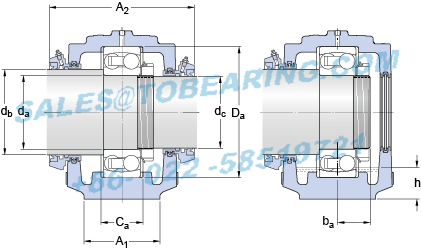

Dimensions

d_a		100	mm
d_b		114.3	mm
d_c		96.838	mm
D_a		180	mm
C_a		55.804	mm
A₁		111.125	mm
A₂		219.075	mm
b_a		38.894	mm
H		217.488	mm
H₁		114.3	mm
H₂		44.45	mm
J	min.	295.275	mm
J	max.	333.375	mm
L		387.35	mm
N₁		25.4	mm
Threaded holes
R₁		58.737	mm
R₂		30.163	mm
R_G		3/8 NPT
P_G		1/4 NPT
Oil level
h		42.069	mm

Included products

Housing			SAF 220
Bearing			1220
Check availability of other clearance classes (e.g. C3)
Lock nut			AN 20
Lock washer			W 20
Stabilizing ring			2 x SR-1520
Taconite seal (d_b shaft position)			TER 118
Taconite seal (d_c shaft position)			TER 106

Associated products

End plug (suffix Y)

EPR 15

Speed ratings

Max. speed for Taconite seal

675

r/min

Recommended safe loads

P_60°	136	kN
P_90°	81.4	kN
P_120°	50.7	kN
P_150°	46.3	kN
P_180°	55.6	kN
P_a	36	kN

Mass

Mass pillow block

26.8

Mounting information

Cap bolt		2 x 3/4-10 UNC
Cap bolt recommended tightening torque		359.3	N·m
Cap bolt, SAE grade		5
Appropriate attachment bolt size	G	0.875	in
Initial grease fill		365.71	g
